You are here: home  > Corcom Filter  > Corcom Filter Entry Modules  > F7287 Corcom 6EH4 TE 1609013-1 6609013-1
Enlarge F7287 Corcom 6EH4 TE 1609013-1 6609013-1

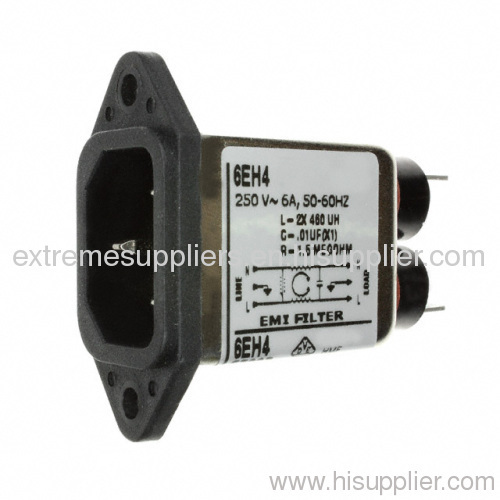

F7287 Corcom 6EH4 TE 1609013-1 6609013-1

Payment Terms: T/T
Place of Origin: Shanghai, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 6EH4
Production Capacity: 1000000
Delivery Date: 35 days
Certification: UL Recognized,CSA Certified...
Rated voltage (max.): 250 VAC
Means of Transport: Ocean,Land
Packing: 168EA/BOX
Brand Name: TE Corcom
Operating Frequency: 50 / 60 Hz
Rated Current:: 3A to 15A

Minimal leakage current suitable for medical equipment
Two element circuit provides basic EMI attenuation above 1 MHz

H Series
  • Minimal leakage current suitable for medical equipment
  • Two element circuit provides basic EMI attenuation above 1 MHz
  • Available with an internal ground circuit inductor
    (C suffix versions) to isolate equipment chassis from
    power line ground at radio frequencies
  • Flanged mounting the same as the EC, ED and EF Series
  • Capacitive output (see EAH, EBH and EJH Series for capacitive input)

Ordering Information

RFI Power Line Filters for UL2601 Healthcare Equipment

Available Part Numbers

3EH1
6EH8
3EH3
6EH9
6EH1
10EH1
6EH3
10EH3
6EH4
10EH4
6EH5
15EH4
GroundCircuit Inductor Versions
10EH4C


Specifications
Maximum leakagecurrent, each Line to Ground:
@ 120 VAC 60 Hz
2 µA
@ 250 VAC 50 Hz
5 µA
Hipot rating (oneminute):
Line to Ground
2250 VDC
Line to Line
1450 VDC
Operating Frequency:
50 / 60 Hz
Rated voltage(max.):
250 VAC
Rated Current:
3A to 15A
Operating Ambient Temperature Range(at rated current Ir):
-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45



Electrical Schematic

RFI Power Line Filters for UL2601 Healthcare Equipment
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

RFI Power Line Filters for UL2601 Healthcare Equipment


Case Styles

H1 (Chassis Mount)

RFI Power Line Filters for UL2601 Healthcare Equipment
Typical Dimensions:
Mounting holes (2):.188 [4.78] Dia.
Line/Load Terminals (4):.250 [6.35] with .07 [1.8] Dia. hole
Ground Terminal (1):.250 [6.35] with .07 x .16 [1.8 x 4.1] slot



H3 (Chassis Mount)

RFI Power Line Filters for UL2601 Healthcare Equipment

Typical Dimensions:
Mounting holes (2):.188 [4.78] Dia.
Wire Leads (5):4.0 [101.6] Min., 18AWG, UL1015


H4 & H4C

RFI Power Line Filters for UL2601 Healthcare Equipment
Typical Dimensions:
Mounting holes (2):.132 [3.35] Dia.
Line Inlet (1):IEC 60320-1 C14
Load Terminals (2):.250 [6.35] with .07 [1.8] Dia. hole
Ground Terminal (1):.250 [6.35] with .07 x .16 [1.8 x 4.1] slot


H9

RFI Power Line Filters for UL2601 Healthcare Equipment
Typical Dimensions:
Mounting holes (2):.132 [3.35] Dia.
Line Inlet (1):IEC 60320-1 C14
Load Terminals (2):.250 [6.35] with .07 [1.8] Dia. hole
Ground Terminal (1):.250 [6.35] with .07 x .16 [1.8 x 4.1] slot


H5

RFI Power Line Filters for UL2601 Healthcare Equipment
Typical Dimensions:
Mounting holes (2):.132 [3.35] Dia.
Line Inlet (1):IEC 60320-1 C14
Wire Leads:4.0 [101.6] Min., 18AWG, UL1015


H8

RFI Power Line Filters for UL2601 Healthcare Equipment
Typical Dimensions:
Mounting holes (2):.132 [3.35] Dia.
Line Inlet (1):IEC 60320-1 C14
Wire Leads:4.0 [101.6] Min., 18AWG, UL1015


Recommended Panel Cutouts

RFI Power Line Filters for UL2601 Healthcare Equipment
Case Dimensions
Part No.
A
B
C
D
E
F
(max.)
(max.)
(max.)
±.015
(max.)
(ref..)
± .38
H1
2.25
1.82
0.66
2.125
2.53
57.2
46.1
16.7
53.98
64.2
H3
.96
1.82
0.66
2.125
2.53
24.40
46.1
16.7
53.98
64.2
6EH4
2.20
1.19
0.81
1.575
1.98
55.9
30.2
20.6
40.01
50.3
10EH4, 10EH4C
2.62
1.19
0.81
1.575
1.98
66.5
30.2
20.6
40.01
50.3
15EH4
2.62
1.19
0.81
1.575
1.98
66.5
30.2
20.6
40.01
50.3
H5
1.55
1.19
0.85
1.575
1.98
.295
39.4
30.2
21.6
40.01
50.3
7.5
H8
1.56
1.19
0.81
1.575
1.98
.295
39.7
30.2
20.6
40.01
50.3
7.5
H9
1.55
1.19
0.85
1.575
1.98
39.4
30.2
21.6
40.01
50.3


Performance Data
Typical Insertion Loss
Measured in closed 50 ohm system

3EH

RFI Power Line Filters for UL2601 Healthcare Equipment


6EH

RFI Power Line Filters for UL2601 Healthcare Equipment


10EH

RFI Power Line Filters for UL2601 Healthcare Equipment


15EH


RFI Power Line Filters for UL2601 Healthcare Equipment

RFI Power Line Filters for UL2601 Healthcare Equipment


Minimum Insertion Loss in dB:
Measured in closed 50 ohm system
Common Mode / Asymmetrical (Line to Ground)

Current Rating
Frequency - MHz
.15
.5
1
5
10
30
3A
18
27
30
30
27
18
6A
9
16
20
26
23
18
10A
7
13
15
17
16
14
15A
5
9
11
12
11
9
