F7530E Corcom 1EAH1 TE 1609002-1 6609002-1

Payment Terms:	T/T
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 1EAH1

Production Capacity: 1000000

Delivery Date: 35 days

Certification: UL Recognized,CSA Certified...

Rated voltage (max.): 250 VAC

Means of Transport: Ocean,Land

Packing: 120EA/BOX

Brand Name: TE Corcom

Operating Frequency: 50 / 60 Hz

Rated Current:: 1A to 15A

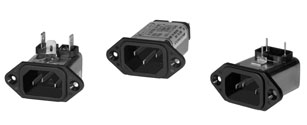

Compact single stage EMI filter with IEC 60320-1 C14 inlet
Two element circuit provides basic attenuation
Same performance as the EF Series

product name: Power Line Filters

EEA Series

1.Compact single stage EMI filter with IEC 60320-1 C14 inlet
2.Two element circuit provides basic attenuation
3.Same performance as the EF Series
4.Available in three terminal configurations
5.Supersedes EFSeries

EEB Series

1.Compact EMI filter with IEC 60320-1 C14 inlet
2.Two element circuit provides extended attenuation
3.Extended differential mode performance
4.Available in three terminal configurations

EAS & EBS Models
1.Same performance as EEA and EEB Series
2.Snap–in mounting
3.Spade terminals

Ordering Information

Specifications

Maximum leakage current, each Line to Ground:
		EEA/EEB Models EAS/EBS Models	EAH/EBH Models
	@ 120 VAC 60 Hz	.22 mA	2 µA
	@ 250 VAC 50 Hz	.38 mA	5 µA
Hipot rating (one minute):
	Line to Ground		2250 VDC
	Line to Line		1450 VDC
Operating Frequency:			50 / 60 Hz
Rated voltage (max.):			250 VAC
Rated Current:			1A to 10A
Operating Ambient Temperature Range (at rated current Ir):
		-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

Accessories

GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

FA601: Insulating Shroud

Available Part Numbers

EEA Models	EEB Models
1EEA1	1EEB1
1EEA2	1EEB2
1EEAP	1EEBP
3EEA1	3EEB2
3EEA2	3EEB2
3EEAP	3EEBP
6EEA1	6EEB1
6EEA2	6EEB2
6EEAP	6EEBP
10EEA1	10EEB1
10EEA2	10EEB2
10EEAP	10EEBP
EAS Models	EBS Models
1EAS1	1EBS1
3EAS1	3EBS1
6EAS1	6EBS1
10EAS1	10EBS1
15EAS1	15EBS1
EAH Models	EBH Models
1EAH1	1EBH1
3EAH1	3EBH1
6EAH1	6EBH1
10EAH1	10EBH1

EAS1 & EBS1

F7901 Corcom 15EAS1 TE 1609004-5 6609004-5

Typical Dimensions:
	Line Inlet (1)	IEC60320-1 C14
	Terminals (2):	.250 [6.35] with .07 [1.8] Dia. hole
	Ground Terminal (1):	.250 [6.35] with .07 x .16 [1.8 x 4.1] slot

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	±.010	(max.)
	(max.)	(max.)	(max.)	± .25	(max.)
EEA1, EEB1, EAH1, EBH1	2.15	1.12	0.81	1.575	1.98
EEA1, EEB1, EAH1, EBH1	54.6	28.4	20.6	40.01	50.3

EEA2, EEB2	1.54	1.12	0.81	1.575	1.98
EEA2, EEB2	39.1	28.4	20.6	40.01	50.3

EEAP, EEBP	1.54	1.12	0.81	1.575	1..98
EEAP, EEBP	39.1	28.4	20.6	40.01	50.3

EAS1, EBS1	2.20	1.15	.96	1.185	1.41
EAS1, EBS1	55.88	29.2	24.38	30.10	35.81

Recommended Panel Cutouts

EAS, EBS

F7901 Corcom 15EAS1 TE 1609004-5 6609004-5

Panel Thickness	G Dim. ± .002 [.05]
0.031 - 0.052 [0.79 - 1.32]	1.260 [32.00]
0.046 - 0.068 [1.17 - 1.73]	1.350 [34.29]

PC Board Layout

F7901 Corcom 15EAS1 TE 1609004-5 6609004-5
