You are here: home  > Corcom Filter  > Corcom Filter Entry Modules  > F7539 Corcom 6ED8 TE 1-1609016-3 1-6609016-3

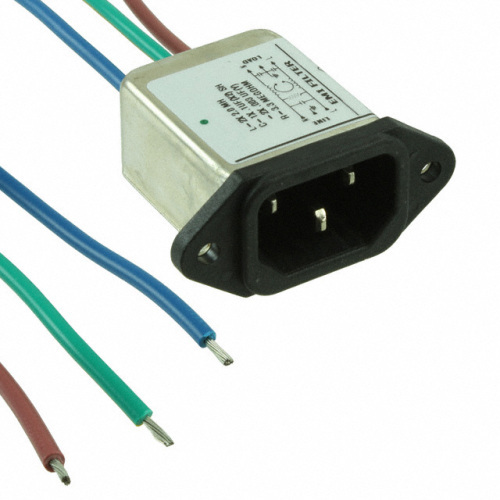

Enlarge F7539 Corcom 6ED8 TE 1-1609016-3 1-6609016-3

F7539 Corcom 6ED8 TE 1-1609016-3 1-6609016-3

Payment Terms: T/T,L/C
Place of Origin: Shanghai, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 6ED8
Production Capacity: 1234567890
Delivery Date: 35 days
Certification: UL Recognized,CSA Certified...
Rated voltage (max.): 250 VAC
Means of Transport: Ocean,Land,Air
Packing: 120EA/BOX
Brand Name: TE Corcom
Operating Frequency: 50 / 60 Hz
Rated Current:: 1A to 15A

Two element circuit provides medium attenuation
Versions up to 15A
Similar to EEJ Series with alternative termination options

ED Series
  • Two element circuit provides medium attenuation
  • Available with an internal ground-circuit inductor (C versions) to isolate equipment chassis from power line ground at radio frequencies
  • Versions up to 15A
  • Similar to EEJ Series with alternative termination options
  • See the EC Series for better differential mode performance

Ordering Information

Highest Performance Compact RFI with IEC Connector

Available Part Numbers

1ED1
1ED2
1ED4
1ED8
3ED1
3ED2
3ED4
3ED8
6ED1
6ED2
6ED4
6ED8
10ED1
15ED1
15ED8
GroundCircuit Inductor Versions
6ED1C
6ED4C
6ED8C
10ED1C

Specifications
Maximum leakagecurrent, each Line to Ground:
@ 120 VAC 60 Hz
.22 mA
@ 250 VAC 50 Hz
.38 mA
Hipot rating (oneminute):
Line to Ground
2250 VDC
Line to Line
1450 VDC
Operating Frequency:
50 / 60 Hz
Rated voltage(max.):
250 VAC
Rated Current:
1A to 15A
Operating Ambient Temperature Range(at rated current Ir):
-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45


Electrical Schematic

Highest Performance Compact RFI with IEC Connector
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

Highest Performance Compact RFI with IEC Connector

FA601: Insulating Shroud

Highest Performance Compact RFI with IEC Connector  Highest Performance Compact RFI with IEC Connector

Case Styles

ED1 & ED1C

Highest Performance Compact RFI with IEC Connector

Typical Dimensions:
Mounting holes (2):.132 [3.35] Dia.
Line Inlet (1)IEC60320-1 C14
Terminals (2):.250 [6.35] with .07 [1.8] Dia. hole
Ground Terminal (1):.250 [6.35] with .07 x .16 [1.8 x 4.1] slot


ED2

Highest Performance Compact RFI with IEC Connector
Typical Dimensions:
Mounting holes (2):.132 [3.35] Dia.
Line Inlet (1)IEC60320-1 C14
Terminals (2):.250 [6.35] with .07 [1.8] Dia. hole
Ground Terminal (1):.250 [6.35] with .07 x .16 [1.8 x 4.1] slot


ED4 & ED4C

Highest Performance Compact RFI with IEC Connector
Typical Dimensions:
Mounting holes (2):.132 [3.35] Dia. with .236 [5.99] Dia. x 90º
countersink for #4 flathead screw
Line Inlet (1)IEC60320-1 C14
Wire Leads (3):4.0 [101.6] Min., 18AWG, UL1015


ED8 & ED8C

Highest Performance Compact RFI with IEC Connector
Typical Dimensions:
Mounting holes (2):.132 [3.35] Dia.
Line Inlet (1)IEC60320-1 C14
Wire Leads (3):4.0 [101.6] Min., 18AWG, UL1015



Recommended Panel Cutouts

Highest Performance Compact RFI with IEC Connector

Note 1: ED1 and ED8 allow for front or back mounting
Note 2: ED2 and ED4 allow for back mounting only


Case Dimensions

Part No.
A
B
C
D
E
F
(max.)
(max.)
(max.)
± .015
(max.)
(ref)
±.38
1ED1, 3ED1, 6ED1
2.21
1.19
0.81
1.575
1.98
56.0
30.2
20.6
40.01
50.3
1ED2, 3ED2, 6ED2
1.55
1.19
0.85
1.575
1.98
39.4
30.2
21.6
40.01
50.3
1ED4, 3ED4, 6ED4
1.55
1.19
0.85
1.575
1.98
.295
39.4
30.2
21.6
40.01
50.3
7.5
1ED8, 3ED8, 6ED8
1.55
1.19
0.81
1.575
1.98
.295
39.4
30.2
20.6
40.01
50.3
7.5
6ED4C
1.98
1.19
0.85
1.575
1.98
.295
50.3
30.2
21.6
40.01
50.3
7.5
6ED8C
1.98
1.19
0.81
1.575
1.98
.295
50.3
30.2
20.6
40.01
50.3
7.5
6ED1C,
10ED1, 10ED1C
15ED1
2.62
1.19
0.81
1.575
1.98
66.5
30.2
20.6
40.01
50.3
15ED8
1.98
1.19
0.81
1.575
1.98
50.3
30.2
20.6
40.01
50.3
