Enlarge RFI Line Filters/DK Series (1-20 Amp)

RFI Line Filters/DK Series (1-20 Amp)

Payment Terms: T/T,L/C
Place of Origin: Shanghai, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: DK Series (1-20 Amp)
Production Capacity: 1000000
Delivery Date: 35 days
Brand Name: Corcom
Rated Current: 1A to 20A
Operating Frequency: 50 / 60 Hz
Means of Transport: Ocean,Air
Packing: 45EA/BOX
Type: EMI Filter
Certification: UL Recognized CSA Certifie...
Rated voltage (max.): 250 VAC

• Higher performance Line to Line attenuation
• Low leakage current

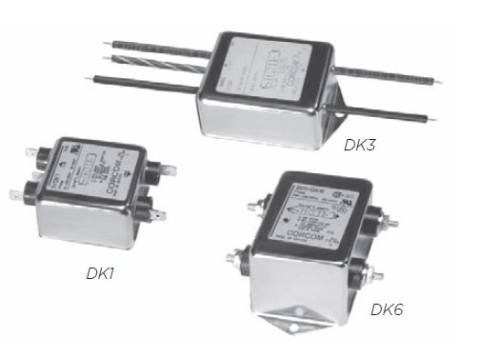

DK Series
  • Higher performance Line to Line attenuation than the K Series
  • E version meets the low leakage current requirements of VDE portable equipment and non-patient care equipment
  • V version features same high performance
    with more cost-effective design

Ordering Information

Enhanced Differential Mode Performance K Series RFI Line Filters


Available Part Numbers

1VDK1
1EDK1
1VDK3
1EDK3
3VDK1
3EDK1
3VDK3
3EDK3
6VDK1
6EDK1
6VDK3
6EDK3
10VDK1
10EDK1
10VDK3
10EDK3
20VDK1
20EDK1
20VDK6


Specifications
Maximum leakagecurrent, each Line to Ground:
VDK Models
EDK Models
@ 120 VAC 60 Hz
.4 mA
.22 mA
@ 250 VAC 50 Hz
.7 mA
.38 mA
Hipot rating (oneminute):
Line to Ground
2250 VDC
Line to Line
1450 VDC
Operating Frequency:
50 / 60 Hz
Rated voltage(max.):
250 VAC
Rated Current:
1A to 20A
Operating Ambient Temperature Range(at rated current Ir):
-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45




Electrical Schematic

Enhanced Differential Mode Performance K Series RFI Line Filters


Case Styles
VDK1 / EDK1

Enhanced Differential Mode Performance K Series RFI Line Filters
Typical Dimensions:
Line/Load Terminals(4):
.250 [6.3] with .07 [1.8] Dia. hole
Ground Terminal(1):
.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
Mounting Holes (2):
.188 [4.75] Dia.


VDK3 / EDK3

Enhanced Differential Mode Performance K Series RFI Line Filters

Typical Dimensions:
Wire leads (5):
.4.0 [101.6] Min. AWG18 (AWG16 for 10A)
Mounting Holes (2):
.188 [4.75] Dia.


20VDK1 / 20EDK1

Enhanced Differential Mode Performance K Series RFI Line Filters
Typical Dimensions:
Line/Load Terminals(4):
.250 [6.3] with .07 [1.8] Dia. hole
Ground Terminal(1):
.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
Mounting Holes (2):
.188 [4.75] Dia.


20VDK6

Enhanced Differential Mode Performance K Series RFI Line Filters
Typical Dimensions:
Terminals (5):
8-32
Torque 18 lbf-in. [2.03 N-m] max. ±2[.22]
Mounting Holes (2):
.188 [4.75] Dia.



Case Dimensions
Part No.
A
B
C
D
E
(max.)
(max.)
(max.)
± .015
(max.)
±.38
1VDK1, 1EDK1
3.35
2.07
1.16
2.375
2.81
85.1
52.6
29.5
60.33
71.4
1VDK3, 1EDK3
2.07
2.07
1.16
2.375
2.81
52.6
52.6
29.5
60.33
71.4
3VDK1, 3EDK1,
6VDK1, 6EDK1
3.85
2.07
1.16
2.938
3.35
97.8
52.6
29.5
74.63
85.1
3VDK3, 3EDK3,
6VDK3, 6EDK3
2.56
2.07
1.16
2.938
3.35
65.0
52.6
29.5
74.63
85.1
10VDK1, 10EDK1
3.85
2.07
1.32
2.938
3.35
97.8
52.6
33.5
74.63
85.1
10VDK3, 10EDK3
2.57
2.07
1.32
2.938
3.35
65.3
52..6
33.5
74.63
85.1
20VDK1, 20EDK1
3.85
2.58
1.78
2.938
3.35
97.8
65.5
45.2
74.63
85.1
20VDK6
3.46
2.58
1.78
2.938
3.35
87.9
65.5
45.2
74.63
85.1



Performance Data
Typical Insertion Loss
Measured in closed 50 ohm system

1 & 3VDK

Enhanced Differential Mode Performance K Series RFI Line Filters
6, 10, 20 VDK

Enhanced Differential Mode Performance K Series RFI Line Filters
1 & 3EDK

Enhanced Differential Mode Performance K Series RFI Line Filters
6, 10, 20 EDK

Enhanced Differential Mode Performance K Series RFI Line Filters


Minimum Insertion Loss in dB:
Measured in closed 50 ohm system

Common Mode / Asymmetrical (Line to Ground)
Current Rating
Frequency - MHz
.15
.5
1
5
10
30
VDK Models
1A, 3A
18
30
40
48
48
40
6A, 10A,20A
10
22
30
39
44
50
EDK Models
1A, 3A
17
27
33
45
45
40
6A, 10A,20A
10
19
25
34
40
46

Differential Mode / Symmetrical (Line to Line)
Current Rating
Frequency - MHz
.15
.5
1
5
10
30
VDK, EDK Models
1A, 3A
18
47
62
60
50
45
6A, 10A,20A
20
43
55
65
60
55
