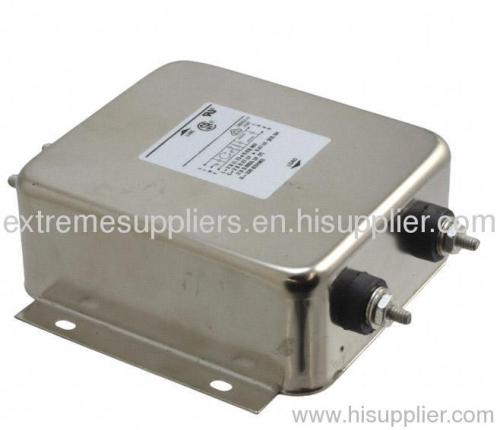

Power Filters V/W Series (3-20 Amp) from China manufacturer - Shanghai Orinet Electronic & Technical Co.,Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: V/W Series (3-20 Amp)

Production Capacity: 1000000

Delivery Date: 35 days

Brand Name: TE Corcom

Operating Frequency: 50 / 60 Hz

Rated Current: 3A to 20A

Means of Transport: Ocean,Air

Packing: 70EA/BOX

Type: EMI Filter

Certification: UL Recognized CSA Certifie...

Rated voltage (max.): 250 VAC

Both the V and W series are effective to control
emissions in equipment using SCR and T2L circuits
for compliance with FCC Part 15

V and W Series

Both the V and W series are effective to control
emissions in equipment using SCR and T2L circuits for compliance with FCC Part 15, Subpart J and EN55022, Level A, down to 150kHz

V Series

Offers an N = 3 ("T") Line to Ground impedance to common mode and an N = 5 "Dbl. Pi") impedance for Line to Line differential mode interference
Designed for susceptibility use when equipment impedance at RF frequencies is low

W Series

Offers an N = 4 ("Dbl. L") Line to Ground impedance for common mode and an N=5 ("Dbl. Pi") impedance for Line to Line differential mode interference
Designed for use when equipment impedance at RF frequencies is high
Two stage construction provides excellent suppression at high frequencies

Ordering Information

Multipurpose RFI Filter for Emission Control and High Noise Industrial Environments

Available Part Numbers

3VV1	3VW1
6VV1	6VW1
10VV1	10VW1
20VV1	20VW1
20VV6	20VW6
	20VW7

Specifications

Maximum leakagecurrent, each Line to Ground:
	@ 120 VAC 60 Hz	0.5 mA
	@ 250 VAC 50 Hz	.82 mA

Hipot rating (oneminute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage(max.):		250 VAC

Rated Current:		3A to 20A
		20A models VDEapproved to 16 Amps
Operating Ambient Temperature Range(at rated current Ir):
		-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

V Series

Multipurpose RFI Filter for Emission Control and High Noise Industrial Environments

W Series (3, 6 & 10A)

Multipurpose RFI Filter for Emission Control and High Noise Industrial Environments

W Series (20A)

Multipurpose RFI Filter for Emission Control and High Noise Industrial Environments

Case Styles

V1 / W1 (3, 6 & 10A)

Multipurpose RFI Filter for Emission Control and High Noise Industrial Environments

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

V1 / W1 (20A)

Multipurpose RFI Filter for Emission Control and High Noise Industrial Environments

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Slots (4):	.250 x .156 [6.35 x 3.96] Dia.

V6 / W6

Multipurpose RFI Filter for Emission Control and High Noise Industrial Environments

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[..22]
	Mounting Slots (4):	.250 x .156 [6.35 x 3.96] Dia.

VW7

Typical Dimensions:
	Load Terminals(2):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal (1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Line Inlet (1):	IEC-60320-1 C20
	Threaded Inserts (2):	6-32 x 1/4

Recommended Panel Cutout

Multipurpose RFI Filter for Emission Control and High Noise Industrial Environments

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	±.015	(max.)
	(max.)	(max.)	(max.)	± .38	(max.)
3VV1, 3VW1	3.36	1.82	1.28	2.375	2.78
3VV1, 3VW1	85.3	46.2	32.5	60.33	70.6

6VV1, 6VW1, 10VV1, 10VW1	3.86	2.08	1.53	2.938	3.34
6VV1, 6VW1, 10VV1, 10VW1	98.0	52.8	38.9	74.63	84.8

20VV1, 20VW1	5.23	3.38	1.53	3.75	4.20
20VV1, 20VW1	132.8	85.9	38.9	95.25	106.7

20VV6, 20VW6	5.34	3.38	1.53	3.76	4.20
20VV6, 20VW6	135.64	85.9	38.9	95.5	106.7

20VW7	5.65	3.12	2.29
20VW7	143.51	79.25	58.17
