Differential Mode Filters/TE Corcom/FL Series (3 Amp) from China manufacturer - Shanghai Orinet Electronic & Technical Co.,Ltd

Differential Mode Filters/TE Corcom/FL Series (3 Amp)

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FL Series (3 Amp)

Production Capacity: 1000000

Type: EMI Filter

Certification: UL Listed

Rated voltage: 125 / 280 VAC

Means of Transport: Ocean,Air

Delivery Date: 35 days

Brand Name: TE Corcom

Operating Frequency: 50 / 60 Hz

Rated Current: 3.9 Amps

• Specifically designed for fluorescent lights
• Suitable for industrial environments
• UL Listed for aftermarket installation

FL Series

Specifically designed forfluorescent lights
Suitable for industrialenvironments
UL Listed for aftermarketinstallation

Ordering Information

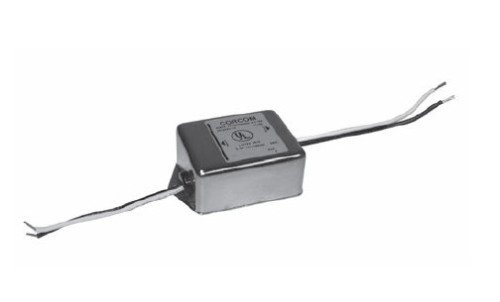

Differential Mode Filter for Fluorescent Lighting Applications n/a

Available Part Numbers

3FL3

Case Styles

Differential Mode Filter for Fluorescent Lighting Applications n/a

Specifications

Maximum leakagecurrent, each Line to Ground:
	@ 125 VAC 60 Hz	3.0 mA
	@ 280 VAC 50 Hz	6.0 mA

Hipot rating (oneminute):
	Line to Ground	1560 VAC
	Line to Line	1560 VAC

Operating Frequency:		50 / 60 Hz

Rated voltage:		125 / 280 VAC

Rated Current:		3.9 Amps

Operating Ambient Temperature Range(at rated current Ir):
		-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

Differential Mode Filter for Fluorescent Lighting Applications n/a

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	± .015	(max.)
	(max.)	(max.)	(max.)	±.38	(max.)
3FL3	3.35	2.07	1.16	2.938	2.57
3FL3	85.09	52.58	29.5	74.63	65.3

Performance Data
Typical Insertion Loss
Measured in closed 50 ohm system

3FL3

Minimum Insertion Loss in dB
Measured in closed 50 ohm system
Differential Mode / Symmetrical (Line to Line)

Current Rating	Frequency - MHz
Current Rating	.15	.3	.6	1	4	10	20

3.9 A	10	18	34	46	56	38	26
