Enlarge The CHAMELEON/P Series (DC) (3-10 Amp)

The CHAMELEON/P Series (DC) (3-10 Amp)

Place of Origin: Shanghai, China (Mainland)
inquire
Add to Basket Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: P Series (DC) (3-10 Amp)
Certification: UL Recognized CSA Certifie...
Brand Name: corcom

Full flexibility of design inthe most compact package
General purpose designed forDC applications

DCP Series
  • Full flexibility of design inthe most compact package
  • General purpose designed forDC applications
  • Mates with a standard MOLEX*connector (HCS Series) which prevents accidental connection to AC Power

Ordering Information

The CHAMELEON® Adaptable Module for General Purpose, DC Applications


Available Part Numbers

PE000DD3D
PS000DD3D
PE000DD6D
PS000DD6D
PE000DDXD
PS000DDXD
PE000SD3D
PS000SD3D
PE000SD6D
PS000SD6D
PE000SDXD
PS000SDXD


Specifications
Hipot rating (oneminute):
Line to Ground
2250 VDC
Line to Line
1450 VDC
Rated voltage(max.):
80 VDC
Rated Current:
3 to 10A
Fuseholder:
Accepts one or twofuses
.25" x 1.25" (not included)
or 5 x 20mm (notincluded)
Terminals:
.187 x .032 [4.8 x .81]terminal tabs
Recommended for usewith mating connector, no solder
Operating Ambient Temperature Range(at rated current Ir):
-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45



Electrical Schematic

The CHAMELEON® Adaptable Module for General Purpose, DC Applications
Case Styles

PE

The CHAMELEON® Adaptable Module for General Purpose, DC Applications


PS

The CHAMELEON® Adaptable Module for General Purpose, DC Applications


Recommended Panel Cutouts

The CHAMELEON® Adaptable Module for General Purpose, DC Applications
Note: The external edges (installation side) on the "D" sides of the cutout should have a minimum .020" radius. For optimal retention against extraction, the corresponding inner edge should be sharp, without paint or coatings. Edge coatings, including anodization are also discouraged for good shield contact.

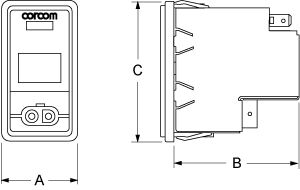

Case Dimensions
Part No.
A
B
C
D
E
F
(max.)
(max.)
(max.)
* see Note
* see Note
(ref.)
PE
1.98
2.13
2.31
1.12
2.201
1.575
50.29
54.10
58.67
28.45
55.91
40.0
PS
1.24
2.13
2.31
1.06
2.201
31.50
54.10
58.67
26.93
55.91
*+.008 [.201] /-.000 [.000]



Accessories

The CHAMELEON® Adaptable Module for General Purpose, DC Applications
GA210 - (shown above) Pre-assembled connector housing with two 36" long 18 gauge wires to mate with P Series DC filters
MOLEX* Component Numbers:
03-12-1026: Connector housing to mate with DCP Series
18-12-1222: Female Terminal (2 needed per housing)
Performance Data
Minimum Insertion Loss in dB:
Measured in closed 50 ohm system

Common Mode / Asymmetrical (Line to Ground)
Current Rating
Frequency - MHz
.03
.1
.15
.5
1
3
5
10
30
3A
7
17
21
27
33
40
44
50
32
6A
-
8
12
17
23
32
36
44
30
10A
-
3
5
10
13
23
27
35
27

Differential Mode / Symmetrical (Line to Line)
Current Rating
Frequency - MHz
.10
.15
.5
1
3
5
10
30
3A
2
4
12
15
30
48
50
45
6A
2
4
12
15
22
42
55
45
10A
2
4
12
15
22
42
55
45
