Product Detail

Model No.: K Series

Production Capacity: 1234567890

Delivery Date: 35 days

Brand Name: TE Corcom

Means of Transport: Ocean,Air

Packing: 72

Type: EMI Filter

Rated Current: 1 to 80A

• Suitable for high impedance loads
• Very low leakage current
• Available with ground line inductor (choke)

Suitable for high impedance loads
Well suited to applications where pulsed, continuous and/or intermittent RFI interference is present
EK models meet the very low leakage current requirements for VDE portable equipment and non-patient care medical equipment
Available with ground line inductor (choke)

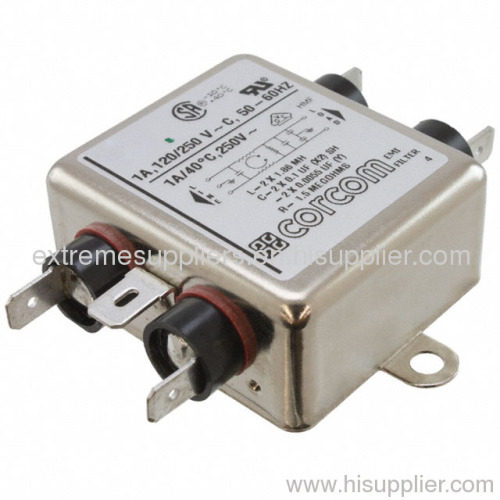

product name : Power Line Filters
K Series

1.Suitable for high impedance loads
2.Well suited to applications where pulsed, continuous and/or intermittent RFI interference is present
3.EK models meet the very low leakage current requirements for VDE portable equipment and non-patient care medical equipment
4.Available with ground line inductor (choke)

Ordering Information

*1-15A: IEC 60320-1 C14 inlet mates with C13 connector
20VK7: C20 inlet mates with C19 connector

Specifications

Maximum leakage current, each Line to Ground:
		VK Models	EK Models
	@ 120 VAC 60 Hz	.5 mA	.21 mA
	@ 250 VAC 50 Hz	1.0 mA	.36 mA

Hipot rating (one minute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage (max.):		250 VAC

Rated Current:		1A to 60A
		20VK7 VDE approved to 16 Amps
Operating Ambient Temperature Range (at rated current Ir):
		-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematics

30 & 40VK6C

60VK6

Accessories

GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

Case Styles

K1 (1, 2, 3, 6, 10A)

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

K1 (20A)

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

Typical Dimensions:
	Wire leads (5):	.4.0 [101.6] Min. AWG18 (AWG16 for 10A)
	Mounting Holes (2):	.188 [4.75] Dia.

10VK6

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[.22]
	Mounting Holes (2):	.188 [4.75] Dia.

20VK6

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[.22]
	Mounting Holes (2):	.188 [4.75] Dia.

30VK6/6C & 40VK6/6C

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[.22]
	Mounting Slots (4):	..250 x .156 [6.35 x 3.96] Dia.

60VK6

Typical Dimensions:
	Terminals (5):	1/4-20, Torque 56 lbf-in. [6.32 N-m] max. ±2[.22]
	Mounting Slots (4):	..250 x .156 [6.35 x 3.96] Dia.

K7 & K7M (3, 5, 10A)

Typical Dimensions:
	Load Terminals(2):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Line Inlet (1):	IEC 60320-1 C14
	K7 Inserts (2):	6-32 x 1/4
	K7M Inserts (2):	M3x.5

20VK7

Typical Dimensions:
	Load Terminals(2):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Line Inlet (1):	IEC 60320-1 C20
	K7 Inserts (2):	6-32 x 1/4
	K7M Inserts (2):	M3x.5

Recommended Panel Cutouts

K7 & K7M Cutout (3, 5, 10A)

tolerance ± .005 [0.13]
Back mount only

20VK7

tolerance ± .005 [0.13]
Back mount only

Available Part Numbers

1VK1	10VK1	1EK1	10EK1
1VK3	10VK3	1EK3	10EK3
2VK1	10VK6	2EK1	10EK7
2VK3	10VK7	2EK3	10EK7M
3VK1	10VK7M	3EK1	20EK1
3VK3	20VK1	3EK3
3VK7	20VK6	3EK7
3VK7M	20VK7	3EK7M
5VK1	30VK6	5EK1
5VK3	30VK6C	5EK3
5VK7	40VK6	5EK7
5VK7M	40VK6C	5EK7M
	60VK6

Corcom Catalog Part Number:		1VK1
TE Part Number:		6609028-1
	1 Amp standard leakage K Series with 1/4 quick connect terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		1VK3
TE Part Number:		6609028-2
	1 Amp standard leakage K Series with wire lead terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		2VK1
TE Part Number:		6609028-3
	2 Amp standard leakage K Series with 1/4 quick connect terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		2VK3
TE Part Number:		6609028-4
	2 Amp standard leakage K Series with wire lead terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		3VK1
TE Part Number:		6609028-5
	3 Amp standard leakage K Series with 1/4 quick connect terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		3VK3
TE Part Number:		6609028-6
	3 Amp standard leakage K Series with wire lead terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		3VK7
TE Part Number:		6609028-7
	3 Amp standard leakage K Series with IEC input and 1/4 quick connect output terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		3VK7M
TE Part Number:		6609028-8
	3 Amp standard leakage K Series with IEC input and 1/4 quick connect terminals with metric tapped insert
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		5VK1
TE Part Number:		6609028-9
	5 Amp standard leakage K Series with 1/4 quick connect terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		5VK3
TE Part Number:		1-6609028-0
	5 Amp standard leakage K Series with wire lead terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		5VK7
TE Part Number:		1-6609028-1
	5 Amp standard leakage K Series with IEC input and 1/4 quick connect output terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		5VK7M
TE Part Number:		1-6609028-2
	5 Amp standard leakage K Series with IEC input and 1/4 quick connect terminals with metric tapped insert
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		10VK1
TE Part Number:		1-6609028-3
	10 Amp standard leakage K Series with 1/4 quick connect terminal
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		10VK3
TE Part Number:		1-6609028-4
	10 Amp standard leakage K Series with wire lead terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		10VK6
TE Part Number:		1-6609028-8
	10 Amp standard leakage K Series with stud terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		10VK7
TE Part Number:		1-6609028-5
	10 Amp standard leakage K Series with IEC input and 1/4 quick connect terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		10VK7M
TE Part Number:		1-6609028-6
	10 Amp standard leakage K Series with IEC input and 1/4 quick connect terminals with metric tapped insert
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		20VK1
TE Part Number:		1-6609028-7
	20 Amp standard leakage K Series with 1/4 quick connect terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		20VK6
TE Part Number:		1-6609028-9
	20 Amp standard leakage K Series with stud terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		20VK7
TE Part Number:		2-6609028-2
	20 Amp standard leakage K Series with IEC input and 1/4 quick connect output terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		30VK6
TE Part Number:		2-6609028-0
	3 0 Amp standard leakage K Series with stud terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		30VK6C
TE Part Number:		2-6609028-1
	3 0 Amp standard leakage K Series with stud terminals and ground choke terminal
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		40VK6
TE Part Number:		2-6609028-3
	EMF/RFI Filter(s)

Corcom Catalog Part Number:		40VK6C
TE Part Number:		2-6609028-4
	EMF/RFI Filter(s)

Corcom Catalog Part Number:		60VK6
TE Part Number:		2-6609028-5
	EMF/RFI Filter(s)

Corcom Catalog Part Number:		1EK1
TE Part Number:		6609027-1
	1 Amp low leakage K Series with 1/4 quick connect terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		1EK3
TE Part Number:		6609027-2
	1 Amp low leakage K Series with wire lead terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		2EK1
TE Part Number:		6609027-3
	2 Amp low leakage K Series with 1/4 quick connect terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		2EK3
TE Part Number:		6609027-4
	2 Amp low leakage K Series with wire lead terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		3EK1
TE Part Number:		6609027-5
	3 Amp low leakage K Series with 1/4 quick connect terminals
	UL Recognized / CSA Certified / VDE Approved

Corcom Catalog Part Number:		3EK3
TE Part Number:		6609027-6
	3 Amp low leakage K Series with wire lead terminals
	UL Recognized / CSA Certified / VDE Approved
