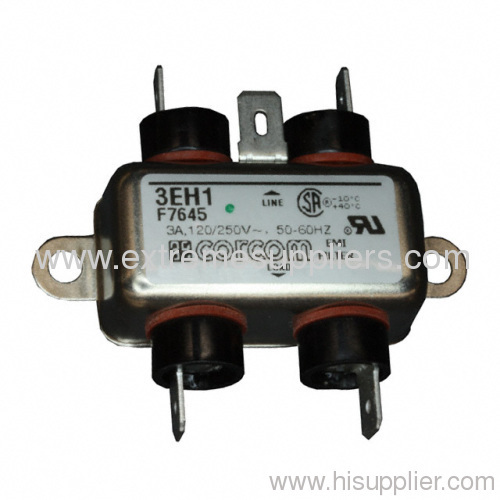

Power Inlet Line Filter for Medical Equipment

UL Recognized
CSA Certified
VDE Approved

15A versions are tested by Underwriters Laboratories to US and Canadian requirements and are VDE approved at 10A, 250VAC

Catalog Data Sheet
Printer friendly version

H Series

Minimal leakage current suitable for medical equipment
Two element circuit provides basic EMI attenuation above 1 MHz
Available with an internal ground circuit inductor
(C suffix versions) to isolate equipment chassis from
power line ground at radio frequencies
Flanged mounting the same as the EC, ED and EF Series
Capacitive output (see EAH, EBH and EJH Series for capacitive input)

Ordering Information

* IEC 60320-1 C14 inlet mates with C13 connector

Available Part Numbers

Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.

Ground Circuit Inductor Versions
3EH1	6EH8
3EH3	6EH9
6EH1	10EH1
6EH3	10EH3
6EH4	10EH4
6EH5	15EH4
10EH4C

Specifications

Maximum leakage current, each Line to Ground:
	@ 120 VAC 60 Hz	2 µA
	@ 250 VAC 50 Hz	5 µA

Hipot rating (one minute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage (max.):		250 VAC

Rated Current:		3A to 15A

Operating Ambient Temperature Range (at rated current Ir):
		-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

Accessories

GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

Case Styles

H1 (Chassis Mount)

Typical Dimensions:
	Mounting holes (2):	.188 [4.78] Dia.
	Line/Load Terminals (4):	.250 [6.35] with .07 [1.8] Dia. hole
	Ground Terminal (1):	.250 [6.35] with .07 x .16 [1.8 x 4.1] slot

H3 (Chassis Mount)

Typical Dimensions:
	Mounting holes (2):	.188 [4.78] Dia.
	Wire Leads (5):	4.0 [101.6] Min., 18AWG, UL1015

H4 & H4C

Typical Dimensions:
	Mounting holes (2):	.132 [3.35] Dia.
	Line Inlet (1):	IEC 60320-1 C14
	Load Terminals (2):	.250 [6.35] with .07 [1.8] Dia. hole
	Ground Terminal (1):	.250 [6.35] with .07 x .16 [1.8 x 4.1] slot

Typical Dimensions:
	Mounting holes (2):	.132 [3.35] Dia.
	Line Inlet (1):	IEC 60320-1 C14
	Load Terminals (2):	.250 [6.35] with .07 [1.8] Dia. hole
	Ground Terminal (1):	.250 [6.35] with .07 x .16 [1.8 x 4.1] slot

Typical Dimensions:
	Mounting holes (2):	.132 [3.35] Dia.
	Line Inlet (1):	IEC 60320-1 C14
	Wire Leads:	4.0 [101.6] Min., 18AWG, UL1015

Typical Dimensions:
	Mounting holes (2):	.132 [3.35] Dia.
	Line Inlet (1):	IEC 60320-1 C14
	Wire Leads:	4.0 [101.6] Min., 18AWG, UL1015

Recommended Panel Cutouts

Note 1: H4, H4C and H8 allow for front or back mounting
Note 2: H5 and H9 allow for back mounting only

Case Dimensions

Part No.	A	B	C	D	E	F
	(max.)	(max.)	(max.)	±.015	(max.)	(ref..)
	(max.)	(max.)	(max.)	± .38	(max.)	(ref..)
H1	2.25	1.82	0.66	2.125	2.53
H1	57.2	46.1	16.7	53.98	64.2

H3	.96	1.82	0.66	2.125	2.53
H3	24.40	46.1	16.7	53.98	64.2

6EH4	2.20	1.19	0.81	1.575	1.98
6EH4	55.9	30.2	20.6	40.01	50.3

10EH4, 10EH4C	2.62	1.19	0.81	1.575	1.98
10EH4, 10EH4C	66.5	30.2	20.6	40.01	50.3

15EH4	2.62	1.19	0.81	1.575	1.98
15EH4	66.5	30.2	20.6	40.01	50.3

H5	1.55	1.19	0.85	1.575	1.98	.295
H5	39.4	30.2	21.6	40.01	50.3	7.5

H8	1.56	1.19	0.81	1.575	1.98	.295
H8	39.7	30.2	20.6	40.01	50.3	7.5

H9	1.55	1.19	0.85	1.575	1.98
H9	39.4	30.2	21.6	40.01	50.3

Performance Data

Typical Insertion Loss
Measured in closed 50 ohm system

3EH	6EH	10EH	15EH

Minimum Insertion Loss in dB:

Measured in closed 50 ohm system

Common Mode / Asymmetrical (Line to Ground)

Differential Mode / Symmetrical (Line to Line)

Current Rating	Frequency - MHz
Current Rating	.15	.5	1	5	10	30

3A	18	27	30	30	27	18
6A	9	16	20	26	23	18
10A	7	13	15	17	16	14
15A	5	9	11	12	11	9
