Model No.: C Series (1-15 Amp)

Production Capacity: 1000000

Delivery Date: 35 days

Certification: UL Recognized,CSA Certified...

Rated voltage (max.): 250 VAC

Means of Transport: Ocean,Land

Packing: cartons

Brand Name: TE Corcom

Operating Frequency: 50 / 60 Hz

Rated Current:: 1A to 15A

• Available with or without a shielded general purpose or medical grade filter
• Two element circuit provides enhanced EMI attenuation

C Series

Two function power entry module combining a DPST switch and an IEC

60320-1 inlet

Snap–in or flange mounting

Available with or without a shielded general purpose or

medical grade filter

Two element circuit provides enhanced EMI attenuation

Reduce OEM wiring time with optional pre–connected line and

switch terminals

Ordering Information

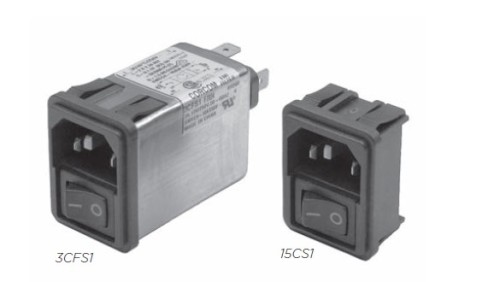

Compact Size IEC Connector with Switch for General or Medical Applications

Available Part Numbers

FilteredVersions
1CHE1
1CFE1
3CHE1
3CFE1
6CHE1
6CFE1
10CHE1
10CFE1
1CHS1
1CFS1
3CHS1
3CFS1
6CHS1
6CFS1
10CHS1
10CFS1
Non-filteredVersions
Standard
Terminals
Pre-connected
Terminals
10CS1
10CBS1
10CE1
10CBE1
15CS1
15CBS1
15CE1
15CBE1

Specifications

Maximum leakagecurrent, each Line to Ground:

F Models
H & Unfiltered Models

@ 120 VAC 60 Hz
.25 mA
2 µA

@ 250 VAC 50 Hz
.40 mA
5 µA

Hipot rating (oneminute):

Line to Ground
2250 VDC

Line to Line
1450 VDC

Operating Frequency:
50 / 60 Hz

Rated Voltage
250 VAC

Rated Current:
1 to 15A

Switch:
DPST
10,000 operations at 51Amax. inrush

.250 TerminalPush-on Force
18 lb / 80N
.188 TerminalPush-on Force
15 lb / 67N

Electrical Schematics

F Models

H Models

B Models

Accessories

GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

Case Styles

CS, CBS

Typical Dimensions:

Line Inlet (1):
IEC60320-1 C14

Terminals (6):
.187 [4.8] with .055 [1.4] Dia. hole

Ground Terminal (1):
.187 [4.8] with .112 x .06 [2.8 x 1.5] slot

CE, CBE

Typical Dimensions:

Mounting holes (2):
.13 [3.3] Dia. with .23 [5.9] Dia. x 90°
countersink for #4 flathead screw

Line Inlet (1):
IEC60320-1 C14

Terminals (6):
.187 [4.8] with .055 [1.4] Dia. hole

Ground Terminal (1):
.187 [4.8] with .112 x .06 [2.8 x 1.5] slot

CFS, CHS

Typical Dimensions:

Line Inlet (1):
IEC60320-1 C14

Terminals (3):
.25 [6.35] with .07 [1.8] Dia. hole

CFE, CHE

Typical Dimensions:

Mounting holes (2):
.13 [3.3] Dia. with .23 [5.9] Dia. x 90°
countersink for #4 flathead screw

Line Inlet (1):
IEC60320-1 C14

Terminals (3):
.25 [6.35] with .07 [1.8] Dia. hole

CBS, CBE Pre-Connected Terminals

Recommended Panel Cutout

Panel thickness: .031 - 0.98 [0.8 - 2.5]

   Not recommended for plastic panels.

   Snap-in models suitable for front mounting only.

   For snap-in applications, the D sides of the the cutout must

   have a .02 [.508] radius on the instllation side.

Case Dimensions

Part No.
A
B
C
D
E
F
(max.)
(max.)
(max.)
±.01
±.01
±.008
± .254
± .254
± .203
CS, CBS
1.22
.93
1.62
1.06
1.54*
30.99
23.62
41.17
26.92
39.12*
CE, CBE
1.74
.93
1.62
1.06
1.56
1.417
44.2
23.62
41.17
26.92
39.62
36.0
CFS, CHS
1.22
2.53
1.62
1.12
1.54*

30.99
64.26
41.17
28.5
39.12*
CFE, CHE
1.74
2.53
1.62
1.12
1.56
1.417
44.2
64.26
41.17
28.5
39.62
36.0
* ±.000
  ± .008
