TE Corcom G Series (6-10 Amp)

Payment Terms: T/T,L/C
Place of Origin: Shanghai, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: G Series (6-10 Amp)
Production Capacity: 1000000
Type: EMI Filter
Certification: UL Recognized CSA Certifie...
Rated voltage (max.): 250 VAC
Means of Transport: Ocean,Air
Delivery Date: 35 days
Brand Name: TE Corcom
Operating Frequency: 50 / 60 Hz
Rated Current: 6 & 10A

• Designed to provide excellent attenuation for
most digital electronics equipment
• Broad frequency range of performance from
20kHz to 30MHz

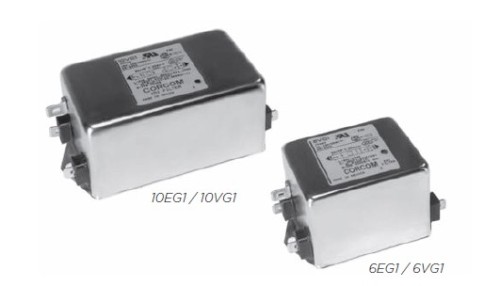

G Series
  • Designed to provide excellent attenuation for most digital electronics equipment
  • Broad frequency range of performance from 20kHz to 30MHz
  • Size and cost-effective solution
  • Designed to help comply with EN55022 Level A and FCC Part 15J Class B

Ordering Information

High Performance Filter for Switching Power Supplies down to 50KHz



Available Part Numbers

6EG1
6VG1
10EG1
10VG1
Specifications

Maximum leakagecurrent, each Line to Ground:
EG Models
VG Models
@ 120 VAC 60 Hz
.30 mA
1.2 mA
@ 250 VAC 50 Hz
.50 mA
2.0 mA
Hipot rating (oneminute):
Line to Ground
2250 VDC
Line to Line
1450 VDC
Operating Frequency:
50 / 60 Hz
Rated voltage(max.):
250 VAC
Rated Current:
6 & 10A
Operating Ambient Temperature Range(at rated current Ir):
-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45



Electrical Schematics

6EG1 & 6VG1

High Performance Filter for Switching Power Supplies down to 50KHz



10EG1 & 10VG1

High Performance Filter for Switching Power Supplies down to 50KHz


Case Dimensions

Part No.
A
B
C
D
E
(max.)
(max.)
(max.)
±.015
(max.)
± .38
6EG1/VG1
3.56
2.15
1.56
2.938
3.38
90.4
54.6
39.6
74.63
85.8

10EG1/VG1
4.69
2.27
1.8
4.063
4.47
119.1
57.7
45.7
103.2
113.5



Case Styles

EG1 & VG1

High Performance Filter for Switching Power Supplies down to 50KHz

Typical Dimensions:
Line/Load Terminals(4):
.250 [6.3] with .07 [1.8] Dia. hole
Ground Terminal(1):
.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
Mounting Holes (2):
.188 [4.75] Dia.



Performance Data
Typical Insertion Loss
Measured in closed 50 ohm system

6EG1

High Performance Filter for Switching Power Supplies down to 50KHz


6VG1

High Performance Filter for Switching Power Supplies down to 50KHz


10EG1

High Performance Filter for Switching Power Supplies down to 50KHz


10VG1

High Performance Filter for Switching Power Supplies down to 50KHz


Minimum Insertion Loss in dB
Measured in closed 50 ohm system

Common Mode / Asymmetrical (Line to Ground)

Current Rating
Frequency - MHz
.01
.05
.07
.1
.15
.5
1
5
10
30

EG1
6A
6
19
23
25
29
48
44
43
40
40
10A
8
10
15
18
42
64
65
65
60
60
VG1
6A
4
18
21
25
30
56
55
53
45
45
10A
5
10
24
37
50
72
70
70
60
60


Differential Mode / Symmetrical (Line to Line)

Current Rating
Frequency - MHz
.01
.05
.07
.1
.15
.5
1
5
10
30

EG1
6A
4
6
10
24
37
66
75
72
50
50
10A
5
5
5
26
40
65
65
60
70
70
VG1
6A
4
7
7
26
39
67
75
68
55
55
10A
5
5
7
26
39
65
60
60
70
70
