TE Corcom/PC Board Mountable Filters/XYZ Series (3-6 Amp)

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: XYZ Series (3-6 Amp)

Production Capacity: 1000000

Delivery Date: 35 days

Brand Name: Corcom

Means of Transport: Ocean,Air

Packing: 120EA/BOX

Type: EMI Filter

Certification: UL Recognized CSA Certifie...

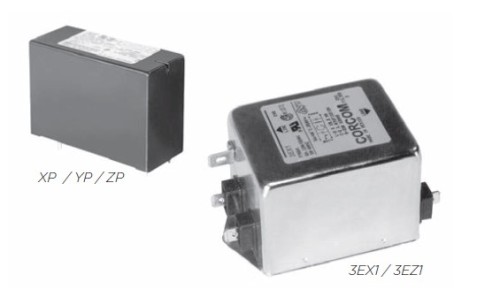

Chassis or PC Board Mountable Power Line Filters for Emission Control

X, Y, Z Series

Compact chassis or PC board mountable
Three levels of performance
Complete filtering solution in minimal size

X Series – Designed to bring most digital equipment (including those with switching power supplies) into compliance with FCC Part 15J, Class B conducted emission limits

Y Series – Designed to bring most digital equipment (including those with switching power supplies) into compliance with EN55022, Level A and FCC Part 15J, Class B conducted emission limits

Z Series – Designed to bring most digital equipment (including those with switching power supplies) into compliance with EN55022, Level B and FCC Part 15J, Class B conducted emission limits

Ordering Information

Available Part Numbers

3EXP	1EZP
3EX1	2EZP
4EXP	3EZP
6EXP	3EZ1
2EYP
3EYP
4EYP

Specifications

Maximum leakage current, each Line to Ground:
	@ 120 VAC 60 Hz	.30 mA
	@ 250 VAC 50 Hz	.50 mA

Hipot rating (one minute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage (max.):		250 VAC

Rated Current:		3 to 6A

Operating Ambient Temperature Range (at rated current Ir):
		-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

Chassis or PC Board Mountable Power Line Filters for Emission Control
