Model No.: EP/VP Series (3-20 Amp)
Production Capacity: 1000000
Delivery Date: 35 days
Brand Name: TE Corcom
Operating Frequency: 50 / 60 Hz
Rated Current: 3A to 20A
Means of Transport: Ocean,Air
Packing: 36EA/BOX
Type: EMI Filter
Certification: UL Recognized CSA Certifie...
Rated voltage (max.): 250 VAC

• Dual stage filter offers high insertion loss
• Well suited for meeting CISPR 22 A and
FCC Part 15J, Class B

EP / VP Series
  • Dual stage filter offers high Insertion Loss
  • Well suited for meeting CISPR 22 A and
  • FCC Part 15J, Class B
  • EP model meets very low leakage current requirements
  • 7A and 12A versions offer optimum package size
Ordering Information

RFI Filter for Switching Power Supply Noise Suppression
* IEC 60320-1 C14 inlet mates with C13 connector


Available Part Numbers

3EP1
10EP1
3EP3
10EP3
3EP7
12EP1
3EP7M
12EP3
6EP1
20EP1
6EP3
20EP6
7EP1
20VP1
7EP3
20VP6



Specifications
Maximum leakagecurrent, each Line to Ground:
VP Models
EP Models
@ 120 VAC 60 Hz
.73mA
.21mA
@ 250 VAC 50 Hz
1.27mA
.36mA
Hipot rating (oneminute):
Line to Ground
2250 VDC
Line to Line
1450 VDC
Operating Frequency:
50 / 60 Hz
Rated voltage(max.):
250 VAC
Rated Current:
3A to 20A
Operating Ambient Temperature Range(at rated current Ir):
-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45



Electrical Schematic

RFI Filter for Switching Power Supply Noise Suppression
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

RFI Filter for Switching Power Supply Noise Suppression



Case Styles

EP1 / VP1 (1-15 Amp Versions)

RFI Filter for Switching Power Supply Noise Suppression

Typical Dimensions:
Line/Load Terminals(4):
.250 [6.3] with .07 [1.8] Dia. hole
Ground Terminal(1):
.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
Mounting Holes (2):
.188 [4.75] Dia.



20EP1 / VP1

RFI Filter for Switching Power Supply Noise Suppression

Typical Dimensions:
Line/Load Terminals(4):
.250 [6.3] with .07 [1.8] Dia. hole
Ground Terminal(1):
.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
Mounting Holes (2):
.188 [4.75] Dia.

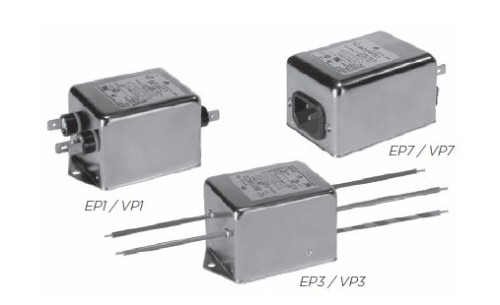

EP3

RFI Filter for Switching Power Supply Noise Suppression
RFI Filter for Switching Power Supply Noise Suppression
Typical Dimensions:
Wire leads (5):
.4.0 [101.6] Min. AWG18 (AWG16 for 10A)
Mounting Holes (2):
.188 [4.75] Dia.


EP7 & EP7M (with metric insert)

RFI Filter for Switching Power Supply Noise Suppression

Typical Dimensions:
Load Terminals(2):
.250 [6.3] with .07 [1.8] Dia. hole
Line Inlet (1):
IEC-60320-1 C14
EP7 Inserts (2):
6-32 x 1/4
EP7M Inserts (2):
M3 x .5


20EP6 / VP6


RFI Filter for Switching Power Supply Noise Suppression
Typical Dimensions:
Terminals (5):
8-32
Torque 18 lbf-in. [2.03 N-m] max. ±2[..22]
Mounting Holes (2):
.188 [4.75] Dia.


Recommended Panel Cutouts

RFI Filter for Switching Power Supply Noise Suppression
Tolerance ± .005 [0.13]
Back mount only


Case Dimensions
Part No.
A
B
C
D
E
(max.)
(max.)
(max.)
± .015
(max.)
±.38
3EP1
3.85
2.07
1.78
2.938
3.35
97.8
52.6
45.2
74.63
85.1
3EP3
2.56
2.07
1.78
2.938
3.35
65.0
52.6
45.2
74.63
85.1
3EP7, 3EP7M
3.21
2.25
1.78
1.575
0.63*
81.5
57.2
45.2
40.01
12.1*
6EP1
6.62
2.07
2.28
5.625
6.03
168.1
52.6
57.9
142.88
153.2
6EP3
5.33
2.07
2.28
5.625
6.03
135.4
52.6
57.9
142.88
153.2
7EP1
4.79
2.07
1.53
3.947
4.33
121.7
52.6
38.9
100.25
109.98
7EP3
3.50
2.07
1.53
3.947
4.33
88.9
52.6
38.6
100.25
109.98
10EP1
6.62
2.07
2.78
5.625
6.03
168.1
52.6
70.6
142.88
85.1
10EP3
5.35
2.07
2.78
5.625
6.03
135.9
52.6
70.6
142.88
153.2
12EP1
4.97
1.78
1.78
4.063
4.46
126.2
45.2
45.2
103.20
113.28
12EP3
3.624
1.78
1.78
4.063
4.46
92.05
45.2
45.2
103.20
113.28
20EP1, 20VP1
4.95
1.8
1.8
4.063
4.47
125.7
45.7
45.7
103.2
113.5
20EP6, 20VP6
5.09
1.78
1.78
4.063
4.46
127.3
45.2
45.2
103.2
129.3
* ± .02 [.5]
