Model No.: S Series

Production Capacity: 1000000

Delivery Date: 35 days

Brand Name: Corcom

Means of Transport: Ocean,Air

Packing: 80EA/BOX

Type: EMI Filter

Certification: UL Recognized CSA Certifie...

Combines Line to Ground interference rejection filters with additional circuitry to reduce Line to Line noise and transients

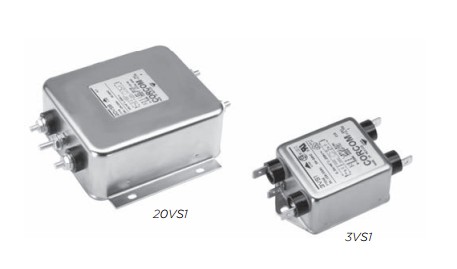

S Series

• Combines Line to Ground interference rejection filters with additional circuitry to reduce Line to

Line noise and transients

• Designed for use when equipment impedance at

RF frequencies is high

• Effective for use with switch-mode power supplies

• Effective when used to control emissions in

equipment using SCR and T2L circuits for

compliance with FCC Part 15, Subpart J and

EN55022, Level A, down to 150kHz

Ordering Information

Multipurpose Filter for Emission Control and High Noise Applications

Available Part Number

Specifications

Maximum leakagecurrent, each Line to Ground:
		3 to 20 Amp	60 Amp
	@ 120 VAC 60 Hz	.4 mA	.75 mA
	@ 250 VAC 50 Hz	.7 mA	1.25 mA

Hipot rating (oneminute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage(max.):		250 VAC

Rated Current:		3A to 60A

Operating Ambient Temperature Range(at rated current Ir):
		-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematics

3, 6, 10VS

Multipurpose Filter for Emission Control and High Noise Applications

20VS

60VS

Case Styles

S1 (3, 6, 10A)

Multipurpose Filter for Emission Control and High Noise Applications

20VS1

20VS6

60VS6

Case Dimensions
