Model No.: 6EQ8

Production Capacity: 1000000

Delivery Date: 35 days

Brand Name: TE Corcom

Operating Frequency: 50 / 60 Hz

Rated Current: 3A to 20A

Means of Transport: Ocean,Air

Packing: 108EA/BOX

Type: EMI Filter

Certification: UL Recognized CSA Certifie...

Rated voltage (max.): 250 VAC

• Specifically developed for switching power
supplies
• High attenuation for common and differential
mode interference

Q Series

Specifically developed for switching power supplies
High attenuation for common and differential mode interference
Effective from 10kHz to 30MHz
Optimized for attenuation and size
3 or 6A versions available with IEC inlet

Ordering Information

Highest Performance Filter for Switching Powers Supplies down to 10KHz

Available Part Numbers

3EQ1	3VQ1
3EQ3	3VQ3
3EQ8	3VQ8
3EQ8M	3VQ8M
6EQ1	20EQ1
6EQ3	20VQ1
6QE8
6EQ8M

Specifications

Maximum leakagecurrent, each Line to Ground:
		VQ Models	EQ Models
	@ 120 VAC 60 Hz (3A,20A)	.73 mA	.22 mA
	@ 120 VAC 60 Hz (6A)	-	.29 mA

	@ 250 VAC 50 Hz (3A,20A)	1.27 mA	.38 mA
	@ 250 VAC 50 Hz (6A)	-	.51 mA

Hipot rating (oneminute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage(max.):		250 VAC

Rated Current:		3A to 20A

Operating Ambient Temperature Range(at rated current Ir):
		-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematics

6, 20A

Highest Performance Filter for Switching Powers Supplies down to 10KHz

Accessories

GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

Highest Performance Filter for Switching Powers Supplies down to 10KHz

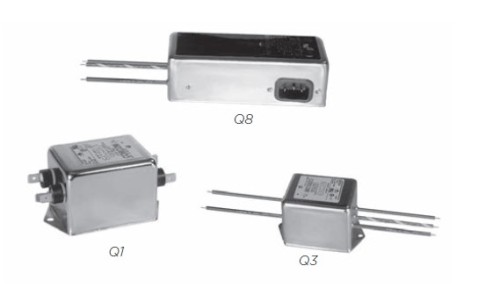

Case Styles

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

Typical Dimensions:
	Wire leads (5):	.4.0 [101.6] Min. AWG18 (AWG16 for 10A)
	Mounting Holes (2):	.188 [4.75] Dia.

3A Q8, Q8M (with metric insert)

Highest Performance Filter for Switching Powers Supplies down to 10KHz

Typical Dimensions:
	Wire leads (3):	.6.0 [152.4] Min. AWG18
	Line Inlet (1):	IEC 60320-1 C14
	Q8 Inserts (2):	6-32 x 1/4
	Q8M Inserts(2):	M3x.5

6A Q8, Q8M (with metric insert)

Highest Performance Filter for Switching Powers Supplies down to 10KHz

Typical Dimensions:
	Wire leads (3):	.6.0 [152.4] Min. AWG18
	Line Inlet (1):	IEC 60320-1 C14
	Q8 Inserts (3):	6-32 x 1/4
	Q8M Inserts(3):	M3x.5

Recommended Panel Cutouts

Highest Performance Filter for Switching Powers Supplies down to 10KHz

tolerance ± .005 [0.13]
Back mount only

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	±.015	(max.)
	(max.)	(max.)	(max.)	± .38	(max.)
3VQ1, 3EQ1	3.85	2.07	1.78	2.938	3.34
3VQ1, 3EQ1	97.8	52.6	45.2	74.63	84.8

3VQ3, 3EQ3	2.56	2.07	1.78	2.938	3.34
3VQ3, 3EQ3	65.0	52.6	45.2	74.63	84.8

3VQ8, 3VQ8M, 3EQ8, 3EQ8M	3.07	2.25	1.78	1.575	0.63*
3VQ8, 3VQ8M, 3EQ8, 3EQ8M	78.0	57.2	45.2	40.01	16.0*

6EQ1	4.98	2.27	1.80	4.063	4.47
6EQ1	126.5	57.7	45.7	103.2	113.5

6EQ3	3.69	2.27	1.80	4.063	4.47
6EQ3	93.7	57.7	45.7	103.2	113.5

6EQ8, 6EQ8M	5.47	2.07	1.78	1.575	2.70
6EQ8, 6EQ8M	138.9	52.6	45.2	40.01	68.0

20EQ1, 20VQ1	6.66	2.07	2.28	5.625	6.03*
20EQ1, 20VQ1	168.1	52.6	57.9	142.9	153.2*

* ± .02 [.05]
