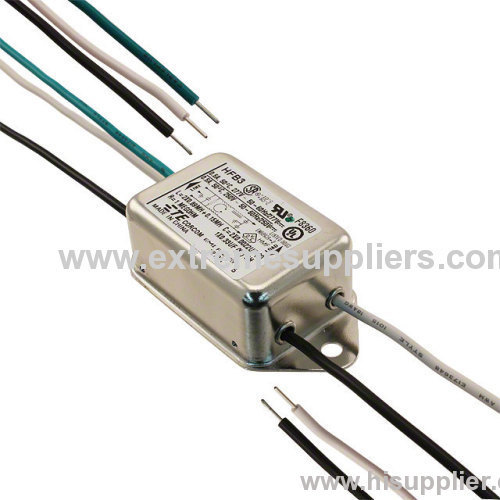

F8360 Corcom TE HFB3 8-1609095-8
| Payment Terms: |
T/T,L/C,D/A |
| Place of Origin: |
Shanghai, China (Mainland) |
Product Detail
Model No.:
HFB3
Production Capacity:
12345678
Delivery Date:
35days
Means of Transport:
Ocean,Land,Air
Packing:
120PIECE/BOX
Brand Name:
Corcom
FL Series
Compact size
277 VAC/VDC
Strong differential mode performance
Solid lead wires
Ambient temperature 50°C
FL Series
- Compact size
- 277 VAC/VDC
- Strong differential mode performance
- Solid lead wires
- Ambient temperature 50°C
Ordering Information
Specifications
| Maximum leakage current, each Line to Ground: |
| | @ 277 VAC 60 Hz | .28 mA |
| | @ 250 VAC 50 Hz | .21 mA |
| | | |
| Hipot rating (one minute): |
| | Line to Ground | 2300 VDC |
| | Line to Line | 1853 VDC |
| | | |
| Operating Frequency: | 50 / 60 Hz |
| | | |
| Rated voltage: | 277 VAC / 277 VDC* |
| | | |
| Rated Current: | 0.5 to 5A |
| |
| Operating Ambient Temperature Range (at rated current Ir): |
| | | -10°C to +50°C |
In an ambient temperature (Ta) higher than +50°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/35
|
| * VDE Approved at 250 VAC & 250 VDC |
Available Part Numbers
Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.
Case Styles
Case Dimensions
| Part No. | A | B | C | D | E |
| (max.) | (max.) | (max.) | (max.) | ± .0.025 |
| ± 0.635 |
| FB Series | 3.0 | 1.42 | .875 | 2.03 | 2.5 |
| 76.2 | 36.07 | 22.23 | 51.56 | 63.5 |
| Common Mode / Asymmetrical (Line to Ground) | Differential Mode / Symmetrical (Line to Line) |
| | | Part No. | Frequency - MHz | | .03 | .05 | .1 | .5 | 1 | 5 | 10 | 20 | 30 |
| | HFB3 | 4 | 8 | 12 | 26 | 32 | 45 | 44 | 38 | 42 | | 2FB3 | 3 | 7 | 13 | 28 | 34 | 45 | 44 | 41 | 41 | | 3FB3 | - | 1 | 6 | 20 | 26 | 41 | 41 | 47 | 50 | | 5FB3 | - | 2 | 5 | 21 | 26 | 41 | 40 | 44 | 48 |
| | Part No. | Frequency - MHz | | .03 | .05 | .1 | .5 | 1 | 5 | 10 | 20 | 30 |
| | HFB3 | 6 | 11 | 20 | 43 | 51 | 55 | 51 | 42 | 41 | | 2FB3 | 6 | 11 | 20 | 43 | 51 | 51 | 44 | 40 | 39 | | 3FB3 | 6 | 10 | 17 | 37 | 47 | 54 | 48 | 44 | 42 | | 5FB3 | 6 | 10 | 16 | 31 | 40 | 51 | 47 | 44 | 41 |
|
|
| | | |
