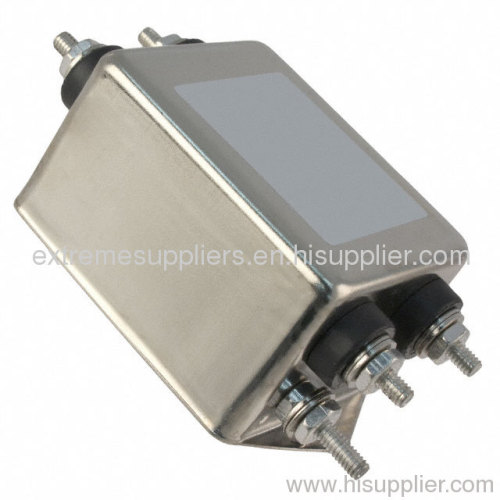

High Performance B Series RFI Line Filters(20VSB6)

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 20VSB6

Production Capacity: 1000000

Delivery Date: 35 days

Brand Name: TE Corcom

Family: Line Filter

Rated Current: 20A

Mounting Type: Chassis Mount

Means of Transport: Ocean,Air

Packing: 108EA/BOX

Type: EMI Filter

Filter Type: Power Line

Rated voltage (max.): 250 VAC

Inductance: 900uH

• Enhanced performance version of our popular
B Series of RFI line filters
• Small size with enhanced performance

SB Series

Enhanced performance version of our popular B Series of RFI line filters
Small size with enhanced performance
30A version half the size of other 30A filters
Low leakage version available that meets current requirements of VDE portable equipment and non-patient care medical equipment

Ordering Information

High Performance B Series RFI Line Filters

Available Part Numbers

6ESB1	6VSB1
10ESB1	10VSB1
10ESB6	10VSB6
20ESB1	20VSB1
20ESB6	20VSB6
30ESB6	30VSB6

Specifications

Maximum leakagecurrent, each Line to Ground:
		VSB Models	ESB Models
	@ 120 VAC 60 Hz	.75 mA	.22 mA
	@ 250 VAC 50 Hz	1.25 mA	.36 mA

Hipot rating (oneminute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage(max.):		250 VAC 250 VDC

Rated Current:		6A to 30A

Operating Ambient Temperature Range(at rated current Ir):
		-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

High Performance B Series RFI Line Filters

Case Styles

6ESB1 & 6VSB1

High Performance B Series RFI Line Filters

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

10ESB1, 10VSB1, 20ESB1 & 20VSB1

High Performance B Series RFI Line Filters

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

ESB6 & VSB6

High Performance B Series RFI Line Filters

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[.22]
	Mounting Holes (2):	.188 [4.75] Dia.

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	±.015	(max.)
	(max.)	(max.)	(max.)	± .38	(max.)
6ESB1, 6VSB1	3.36	1.82	0.91	2.375	2.78
6ESB1, 6VSB1	85.34	46.23	23.11	60.325	70.61

10ESB1, 10VSB1	3.36	1.82	1.28	2.375	2.78
10ESB1, 10VSB1	85.34	46.23	32.51	60.325	70.61

10ESB6, 10VSB6	3.47	1.82	1.53	2.375	2.78
10ESB6, 10VSB6	88.14	46.23	38.86	60.325	70.61

20ESB1, 20VSB1	3.85	2.07	1.31	2.938	3.35
20ESB1, 20VSB1	97.79	52.58	33.27	74.625	85.09

20ESB6, 20VSB6	4.00	2.07	1.53	2.938	3.35
20ESB6, 20VSB6	101.60	52.58	38.86	74.625	85.09

30ESB6, 30VSB6	4.92	2.07	1.53	3.947	4.33
30ESB6, 30VSB6	124.97	52.58	38.86	100.254	109.98
