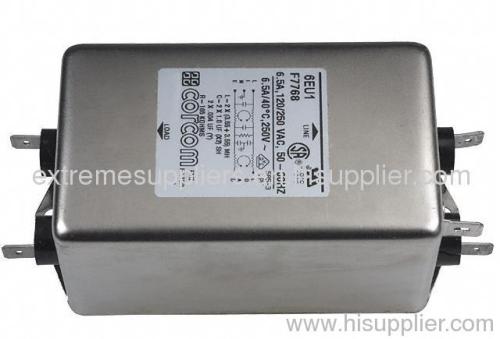

RFI Filter for Power Factor Corrected Power Supplies/6EU1

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 6EU1

Production Capacity: 1000000

Delivery Date: 35 days

Brand Name: TE Corcom

Operating Frequency: 50 / 60 Hz

Rated Current: 6 Amps

Means of Transport: Ocean,Air

Packing: 108EA/BOX

Type: EMI Filter

Certification: UL Recognized CSA Certifie...

Rated voltage (max.): 250 VAC

• Designed for equipment using power factor
corrected power supplies
• Offers high impedance circuit to mismatch the
power supply's impedanc

U Series

Designed for equipment using power factor corrected power supplies
Offers high impedance circuit to mismatch the power supply's impedance characteristics
Available in PC board mountable version
All models meet low leakage current requirements

Ordering Information

RFI Filter for Power Factor Corrected Power Supplies

Available Part Numbers

6EUP

6EU1

Specifications

Maximum leakagecurrent, each Line to Ground:
	@ 120 VAC 60 Hz:	.30 mA
	@ 250 VAC 50 Hz:	.50 mA

Hipot rating (oneminute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage(max.):		250 VAC

Rated Current:		6 Amps

Operating Ambient Temperature Range(at rated current Ir):
		-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

RFI Filter for Power Factor Corrected Power Supplies

Case Styles

6EU1

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

6EUP

Typical Dimensions:
	Pins (6):	0.065 [1.65] diagonal max.
	Threaded insert (3):	6-32

Recommended PC Board Layout

RFI Filter for Power Factor Corrected Power Supplies

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	± .015	(max.)
	(max.)	(max.)	(max.)	±.38	(max.)
6EU1	4.95	2.27	1.80	4.06	4.47
6EU1	125.73	57.66	45.72	103.12	113.54

6EUP	4.70	2.51	1.22
6EUP	119.4	63.8	31.0

Performance Data

Typical Insertion Loss
Measured in closed 50 ohm system
6EU

RFI Filter for Power Factor Corrected Power Supplies

Minimum Insertion Loss in dB:
Measured in closed 50 ohm system

Common Mode / Asymmetrical (Line to Ground)

Current Rating	Frequency - MHz
Current Rating	.05	.1	.15	.5	1	5	10	30

6A	4	30	40	70	70	70	65	50

Differential Mode / Symmetrical (Line to Line)

Current Rating	Frequency - MHz
Current Rating	.05	.1	.15	.5	1	5	10	30

6A	10	35	45	70	70	70	65	55
