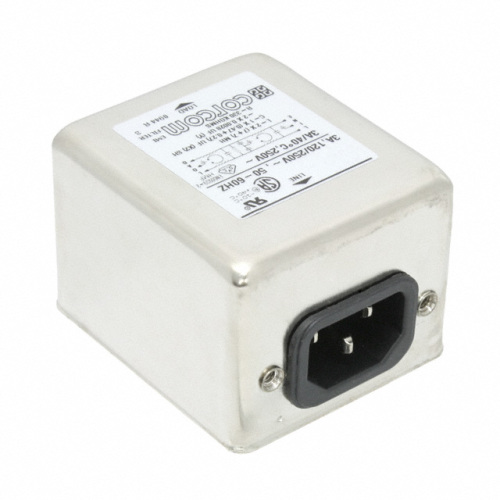

F7172 Corcom 3EP7M TE 1609037-4 6609037-4

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 3EP7M

Production Capacity: 1000000

Delivery Date: 35 days

Brand Name: Corcom

Operating Frequency: 50 / 60 Hz

Rated Current: 3A to 20A

Means of Transport: Ocean,Air

Packing: 27EA/BOX

Type: EMI Filter

Certification: UL Recognized CSA Certifie...

Rated voltage (max.): 250 VAC

• Dual stage filter offers high insertion loss
• Well suited for meeting CISPR 22 A and
FCC Part 15J, Class B

EP / VP Series

Dual stage filter offers high Insertion Loss
Well suited for meeting CISPR 22 A and
FCC Part 15J, Class B
EP model meets very low leakage current requirements
7A and 12A versions offer optimum package size

Ordering Information

RFI Filter for Switching Power Supply Noise Suppression

* IEC 60320-1 C14 inlet mates with C13 connector

Available Part Numbers

3EP1	10EP1
3EP3	10EP3
3EP7	12EP1
3EP7M	12EP3
6EP1	20EP1
6EP3	20EP6
7EP1	20VP1
7EP3	20VP6

Specifications

Maximum leakagecurrent, each Line to Ground:
		VP Models	EP Models
	@ 120 VAC 60 Hz	.73mA	.21mA
	@ 250 VAC 50 Hz	1.27mA	.36mA

Hipot rating (oneminute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage(max.):		250 VAC

Rated Current:		3A to 20A

Operating Ambient Temperature Range(at rated current Ir):
		-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

RFI Filter for Switching Power Supply Noise Suppression

Accessories

GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

RFI Filter for Switching Power Supply Noise Suppression

Case Styles

EP1 / VP1 (1-15 Amp Versions)

RFI Filter for Switching Power Supply Noise Suppression

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

20EP1 / VP1

RFI Filter for Switching Power Supply Noise Suppression

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

EP3

Typical Dimensions:
	Wire leads (5):	.4.0 [101.6] Min. AWG18 (AWG16 for 10A)
	Mounting Holes (2):	.188 [4.75] Dia.

EP7 & EP7M (with metric insert)

RFI Filter for Switching Power Supply Noise Suppression

Typical Dimensions:
	Load Terminals(2):	.250 [6.3] with .07 [1.8] Dia. hole
	Line Inlet (1):	IEC-60320-1 C14
	EP7 Inserts (2):	6-32 x 1/4
	EP7M Inserts (2):	M3 x .5

20EP6 / VP6

RFI Filter for Switching Power Supply Noise Suppression

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[..22]
	Mounting Holes (2):	.188 [4.75] Dia.

Recommended Panel Cutouts

RFI Filter for Switching Power Supply Noise Suppression

Tolerance ± .005 [0.13]
Back mount only

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	± .015	(max.)
	(max.)	(max.)	(max.)	±.38	(max.)
3EP1	3.85	2.07	1.78	2.938	3.35
3EP1	97.8	52.6	45.2	74.63	85.1

3EP3	2.56	2.07	1.78	2.938	3.35
3EP3	65.0	52.6	45.2	74.63	85.1

3EP7, 3EP7M	3.21	2.25	1.78	1.575	0.63*
3EP7, 3EP7M	81.5	57.2	45.2	40.01	12.1*

6EP1	6.62	2.07	2.28	5.625	6.03
6EP1	168.1	52.6	57.9	142.88	153.2

6EP3	5.33	2.07	2.28	5.625	6.03
6EP3	135.4	52.6	57.9	142.88	153.2

7EP1	4.79	2.07	1.53	3.947	4.33
7EP1	121.7	52.6	38.9	100.25	109.98

7EP3	3.50	2.07	1.53	3.947	4.33
7EP3	88.9	52.6	38.6	100.25	109.98

10EP1	6.62	2.07	2.78	5.625	6.03
10EP1	168.1	52.6	70.6	142.88	85.1

10EP3	5.35	2.07	2.78	5.625	6.03
10EP3	135.9	52.6	70.6	142.88	153.2

12EP1	4.97	1.78	1.78	4.063	4.46
12EP1	126.2	45.2	45.2	103.20	113.28

12EP3	3.624	1.78	1.78	4.063	4.46
12EP3	92.05	45.2	45.2	103.20	113.28

20EP1, 20VP1	4.95	1.8	1.8	4.063	4.47
20EP1, 20VP1	125.7	45.7	45.7	103.2	113.5

20EP6, 20VP6	5.09	1.78	1.78	4.063	4.46
20EP6, 20VP6	127.3	45.2	45.2	103.2	129.3

* ± .02 [.5]
