F7298 TE 6V1 Corcom 6609040-2 1609040-2 from China manufacturer - Shanghai Orinet Electronic & Technical Co.,Ltd

Payment Terms:	T/T,L/C,D/A
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

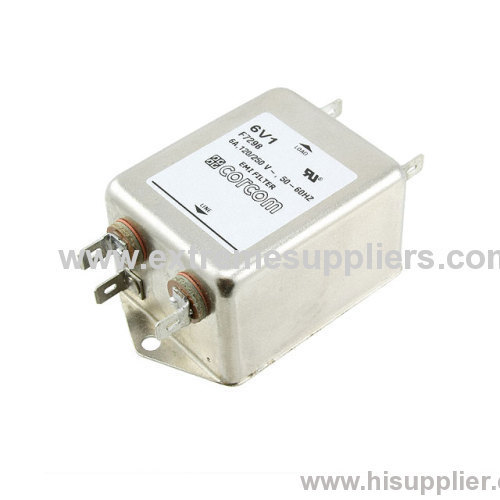

Model No.: 6V1

Production Capacity: 12345678

Delivery Date: 35days

Means of Transport: Ocean,Land,Air

Packing: 120PIECE/BOX

Brand Name: TE

V and W Series
Both the V and W series are effective to control
emissions in equipment using SCR and T2L circuits for compliance with FCC Part 15,

V and W Series
Both the V and W series are effective to control
emissions in equipment using SCR and T2L circuits for compliance with FCC Part 15,
V Series

Offers an N = 3 ("T") Line to Ground impedance to common mode and an N = 5 "Dbl. Pi") impedance for Line to Line differential mode interference
Designed for susceptibility use when equipment impedance at RF frequencies is low

W Series

Offers an N = 4 ("Dbl. L") Line to Ground impedance for common mode and an N=5 ("Dbl. Pi") impedance for Line to Line differential mode interference
Designed for use when equipment impedance at RF frequencies is high
Two stage construction provides excellent suppression at high frequencies

Ordering Information

Available Part Numbers

Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.

3VV1	3VW1
6VV1	6VW1
10VV1	10VW1
20VV1	20VW1
20VV6	20VW6
	20VW7

Specifications

Maximum leakage current, each Line to Ground:
	@ 120 VAC 60 Hz	0.5 mA
	@ 250 VAC 50 Hz	.82 mA

Hipot rating (one minute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage (max.):		250 VAC

Rated Current:		3A to 20A
		20A models VDE approved to 16 Amps
Operating Ambient Temperature Range (at rated current Ir):
		-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic
V Series

W Series (3, 6 & 10A)

W Series (20A)

Case Styles
V1 / W1 (3, 6 & 10A)

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.
