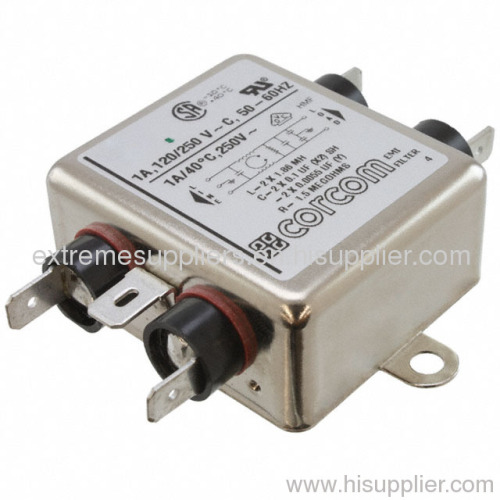

F7083 Corcom 2EK1 TE 1609027-3 6609027-3
| Payment Terms: |
T/T,L/C |
| Place of Origin: |
Shanghai, China (Mainland) |
Product Detail
Model No.:
2EK1
Production Capacity:
1234567890
Delivery Date:
35 Days
Certification:
UL Recognized,CSA Certified...
Rated voltage (max.):
250 VAC
Means of Transport:
Ocean,Land,Air
Packing:
72EA/BOX
Brand Name:
TE Corcom
Operating Frequency:
50 / 60 Hz
Rated Current::
1A to 10A
1.Suitable for high impedance loads
2.Well suited to applications where pulsed, continuous and/or intermittent RFI interference is present
product name : Power Line Filters
K Series
1.Suitable for high impedance loads
2.Well suited to applications where pulsed, continuous and/or intermittent RFI interference is present
3.EK models meet the very low leakage current requirements for VDE portable equipment and non-patient care medical equipment
4.Available with ground line inductor (choke)
Ordering Information
*1-15A: IEC 60320-1 C14 inlet mates with C13 connector
20VK7: C20 inlet mates with C19 connector
Specifications
| Maximum leakage current, each Line to Ground: |
| | | VK Models | EK Models |
| | @ 120 VAC 60 Hz | .5 mA | .21 mA |
| | @ 250 VAC 50 Hz | 1.0 mA | .36 mA |
| | | |
| Hipot rating (one minute): |
| | Line to Ground | 2250 VDC |
| | Line to Line | 1450 VDC |
| | | |
| Operating Frequency: | 50 / 60 Hz |
| | | |
| Rated voltage (max.): | 250 VAC |
| | | |
| Rated Current: | 1A to 60A |
| | 20VK7 VDE approved to 16 Amps |
| Operating Ambient Temperature Range (at rated current Ir): |
| | | -10°C to +40°C |
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45
|
Electrical Schematics
30 & 40VK6C
60VK6
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C13 line cord
Case Styles
(1, 2, 3, 6, 10A)
| Typical Dimensions: |
| | Line/Load Terminals(4): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Mounting Holes (2): | .188 [4.75] Dia. |
K1 (20A)
| Typical Dimensions: |
| | Line/Load Terminals(4): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Mounting Holes (2): | .188 [4.75] Dia. |
K3
| Typical Dimensions: | |
| | Wire leads (5): | .4.0 [101.6] Min. AWG18 (AWG16 for 10A) |
| | Mounting Holes (2): | .188 [4.75] Dia. |
10VK6
| Typical Dimensions: | |
| | Terminals (5): | 8-32
Torque 18 lbf-in. [2.03 N-m] max. ±2[.22] |
| | Mounting Holes (2): | .188 [4.75] Dia. |
20VK6
| Typical Dimensions: | |
| | Terminals (5): | 8-32
Torque 18 lbf-in. [2.03 N-m] max. ±2[.22] |
| | Mounting Holes (2): | .188 [4.75] Dia. |
30VK6/6C & 40VK6/6C
| Typical Dimensions: | |
| | Terminals (5): | 8-32
Torque 18 lbf-in. [2.03 N-m] max. ±2[.22] |
| | Mounting Slots (4): | ..250 x .156 [6.35 x 3.96] Dia. |
60VK6
| Typical Dimensions: | |
| | Terminals (5): | 1/4-20,
Torque 56 lbf-in. [6.32 N-m] max. ±2[.22] |
| | Mounting Slots (4): | ..250 x .156 [6.35 x 3.96] Dia. |
K7 & K7M (3, 5, 10A)
| Typical Dimensions: |
| | Load Terminals(2): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Line Inlet (1): | IEC 60320-1 C14 |
| | K7 Inserts (2): | 6-32 x 1/4 |
| | K7M Inserts (2): | M3x.5 |
20VK7
| Typical Dimensions: |
| | Load Terminals(2): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Line Inlet (1): | IEC 60320-1 C20 |
| | K7 Inserts (2): | 6-32 x 1/4 |
| | K7M Inserts (2): | M3x.5 |
Recommended Panel Cutouts
K7 & K7M Cutout (3, 5, 10A)
tolerance ± .005 [0.13]
Back mount only
20VK7
tolerance ± .005 [0.13]
Back mount only
Available Part Numbers
| 1VK1 | 10VK1 | 1EK1 | 10EK1 |
| 1VK3 | 10VK3 | 1EK3 | 10EK3 |
| 2VK1 | 10VK6 | 2EK1 | 10EK7 |
| 2VK3 | 10VK7 | 2EK3 | 10EK7M |
| 3VK1 | 10VK7M | 3EK1 | 20EK1 |
| 3VK3 | 20VK1 | 3EK3 | |
| 3VK7 | 20VK6 | 3EK7 | |
| 3VK7M | 20VK7 | 3EK7M | |
| 5VK1 | 30VK6 | 5EK1 | |
| 5VK3 | 30VK6C | 5EK3 | |
| 5VK7 | 40VK6 | 5EK7 | |
| 5VK7M | 40VK6C | 5EK7M | |
| | 60VK6 |
Corcom Catalog Part Number:
| 1VK1
|
| TE Part Number: | 6609028-1 |
| | 1 Amp standard leakage K Series with 1/4 quick connect terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 1VK3
|
| TE Part Number: | 6609028-2 |
| | 1 Amp standard leakage K Series with wire lead terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 2VK1
|
| TE Part Number: | 6609028-3 |
| | 2 Amp standard leakage K Series with 1/4 quick connect terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 2VK3
|
| TE Part Number: | 6609028-4 |
| | 2 Amp standard leakage K Series with wire lead terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 3VK1
|
| TE Part Number: | 6609028-5 |
| | 3 Amp standard leakage K Series with 1/4 quick connect terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 3VK3
|
| TE Part Number: | 6609028-6 |
| | 3 Amp standard leakage K Series with wire lead terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 3VK7
|
| TE Part Number: | 6609028-7 |
| | 3 Amp standard leakage K Series with IEC input and 1/4 quick connect output terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 3VK7M
|
| TE Part Number: | 6609028-8 |
| | 3 Amp standard leakage K Series with IEC input and 1/4 quick connect terminals with metric tapped insert |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 5VK1
|
| TE Part Number: | 6609028-9 |
| | 5 Amp standard leakage K Series with 1/4 quick connect terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 5VK3
|
| TE Part Number: | 1-6609028-0 |
| | 5 Amp standard leakage K Series with wire lead terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 5VK7
|
| TE Part Number: | 1-6609028-1 |
| | 5 Amp standard leakage K Series with IEC input and 1/4 quick connect output terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 5VK7M
|
| TE Part Number: | 1-6609028-2 |
| | 5 Amp standard leakage K Series with IEC input and 1/4 quick connect terminals with metric tapped insert |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 10VK1
|
| TE Part Number: | 1-6609028-3 |
| | 10 Amp standard leakage K Series with 1/4 quick connect terminal |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 10VK3
|
| TE Part Number: | 1-6609028-4 |
| | 10 Amp standard leakage K Series with wire lead terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 10VK6
|
| TE Part Number: | 1-6609028-8 |
| | 10 Amp standard leakage K Series with stud terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 10VK7
|
| TE Part Number: | 1-6609028-5 |
| | 10 Amp standard leakage K Series with IEC input and 1/4 quick connect terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 10VK7M
|
| TE Part Number: | 1-6609028-6 |
| | 10 Amp standard leakage K Series with IEC input and 1/4 quick connect terminals with metric tapped insert |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 20VK1
|
| TE Part Number: | 1-6609028-7 |
| | 20 Amp standard leakage K Series with 1/4 quick connect terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 20VK6
|
| TE Part Number: | 1-6609028-9 |
| | 20 Amp standard leakage K Series with stud terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 20VK7
|
| TE Part Number: | 2-6609028-2 |
| | 20 Amp standard leakage K Series with IEC input and 1/4 quick connect output terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 30VK6
|
| TE Part Number: | 2-6609028-0 |
| | 3 0 Amp standard leakage K Series with stud terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 30VK6C
|
| TE Part Number: | 2-6609028-1 |
| | 3 0 Amp standard leakage K Series with stud terminals and ground choke terminal |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 40VK6
|
| TE Part Number: | 2-6609028-3 |
| | EMF/RFI Filter(s) |
Corcom Catalog Part Number:
| 40VK6C
|
| TE Part Number: | 2-6609028-4 |
| | EMF/RFI Filter(s) |
Corcom Catalog Part Number:
| 60VK6
|
| TE Part Number: | 2-6609028-5 |
| | EMF/RFI Filter(s) |
Corcom Catalog Part Number:
| 1EK1
|
| TE Part Number: | 6609027-1 |
| | 1 Amp low leakage K Series with 1/4 quick connect terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 1EK3
|
| TE Part Number: | 6609027-2 |
| | 1 Amp low leakage K Series with wire lead terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 2EK1
|
| TE Part Number: | 6609027-3 |
| | 2 Amp low leakage K Series with 1/4 quick connect terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 2EK3
|
| TE Part Number: | 6609027-4 |
| | 2 Amp low leakage K Series with wire lead terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 3EK1
|
| TE Part Number: | 6609027-5 |
| | 3 Amp low leakage K Series with 1/4 quick connect terminals |
| | UL Recognized / CSA Certified / VDE Approved |
Corcom Catalog Part Number:
| 3EK3
|
| TE Part Number: | 6609027-6 |
| | 3 Amp low leakage K Series with wire lead terminals |
| | UL Recognized / CSA Certified / VDE Approved |
