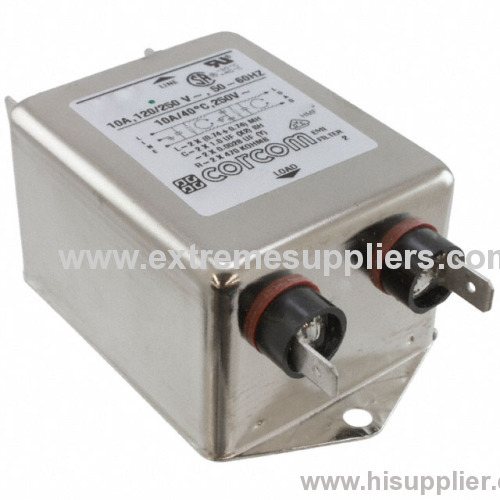

EMC Series
Compact dual stage filter series
Cost-effective design
Current rating up to 30A
High differential mode attenuation in the lower freq
EMC Series
Compact dual stage filter series
Cost-effective design
Current rating up to 30A
High differential mode attenuation in the lower freq
Ordering Information
Specifications
| Maximum leakage current, each Line to Ground: |
| | | 3, 6, 10 Amp | 15, 20, 30 Amp |
| | @ 120 VAC 60 Hz | .21 mA | .73 mA |
| | @ 250 VAC 50 Hz | .43 mA | 1.52 mA |
| | | |
| Hipot rating (one minute): |
| | Line to Ground | 2250 VDC |
| | Line to Line | 1450 VDC |
| | | |
| Operating Frequency: | 50 / 60 Hz |
| | | |
| Rated voltage (max.): | 250 VAC |
| | | |
| Rated Current: | 1A to 30A |
| | |
| Operating Ambient Temperature Range (at rated current Ir): |
| | | -10°C to +40°C |
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45 |
Available Part Numbers
Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.
| 3EMC1 | 10EMC3 |
| 6EMC1 | 15EMC3 |
| 10EMC1 | 10EMC6 |
| 15EMC1 | 15EMC6 |
| 20EMC1 | 20EMC6 |
| 3EMC3 | 30EMC6 |
| 6EMC3 | |
Electrical Schematic
Case Styles
EMC1
| Typical Dimensions: |
| | Line/Load Terminals(4): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Mounting Holes (2): | .187 ±.008 [4.75 ±.20] Di |
EMC6
| Typical Dimensions: | |
| | Terminals (5): | 8-32
Torque 18 lbf-in. [2.03 N-m] max. ±2[.22] |
| | Mounting Holes (2): | .187 ±.008 [4.75 ±.20] Dia. |
Case Dimensions
| Part No. | A | B | C | D | E |
| (max.) | (max.) | (max.) | (max.) | (max.) |
| 3EMC1 | 3.35 | 1.81 | 1.16 | 2.375 | 2.78 |
| 85.1 | 46.0 | 29.5 | 60.3 | 70.6 |
|
| 6EMC1, 10EMC1 | 3.85 | 2.07 | 1.16 | 2.938 | 3.35 |
| 97.8 | 52.6 | 29.5 | 74.6 | 85.1 |
|
| 15EMC1, 20EMC1 | 4.97 | 2.25 | 1.78 | 4.063 | 4.46 |
| 126.2 | 57.2 | 45.2 | 103.2 | 113.3 |
|
| 3EMC3 | 2.07 | 1.81 | 1.16 | 2.375 | 2.78 |
| 52.6 | 46.0 | 29.5 | 60.3 | 70.6 |
|
| 6EMC3 | 2.56 | 2.07 | 1.16 | 2.938 | 3.35 |
| 65.0 | 52.6 | 29.5 | 74.6 | 85.1 |
|
| 10EMC3 | 2.56 | 2.07 | 1.53 | 2.938 | 3.35 |
| 65.0 | 52.6 | 38.9 | 74.63 | 85.1 |
|
| 15EMC3 | 3.69 | 2.25 | 1.78 | 4.063 | 4.47 |
| 93.7 | 57.2 | 45.2 | 103.2 | 113.5 |
|
| 10EMC6 | 3.94 | 2.07 | 1.53 | 2.938 | 3.35 |
| 99.9 | 52.6 | 38.9 | 74.6 | 85.1 |
|
| 15EMC6, 20EMC6 | 5.09 | 2.25 | 1.78 | 4.063 | 4.47 |
| 129.3 | 57.2 | 45.2 | 103.2 | 113.5 |
|
| 30EMC6 | 6.05 | 3.12 | 2.18 | 3.50 | 3.96 |
| 153.7 | 79.2 | 55.4 | 88.9 | 100.6 |
|
| Minimum Insertion Loss in dB: |
| Measured in closed 50 ohm system |
| | | |
| Common Mode / Asymmetrical (Line to Ground) | | Differential Mode / Symmetrical (Line to Line) |
| |
|
| Current Rating | Frequency - MHz | | .05 | .07 | .11 | .15 | 1 | 2 | 10 | 20 | 30 |
| | 3A | 6 | 6 | 3 | 16 | 65 | 66 | 62 | 60 | 59 | | 6A | 6 | 6 | 2 | 15 | 65 | 67 | 65 | 62 | 63 | | 10A | 5 | 2 | 13 | 24 | 72 | 72 | 56 | 50 | 48 | | 15A | 3 | 1 | 12 | 22 | 70 | 68 | 57 | 54 | 53 | | 20A | 2 | 2 | 11 | 21 | 58 | 57 | 63 | 55 | 52 | | 30A | 2 | 2 | 14 | 22 | 47 | 52 | 60 | 48 | 43 |
|
| | | Current Rating | Frequency - MHz | | .05 | .07 | .11 | .15 | 1 | 2 | 10 | 20 | 30 |
| | 3A | 12 | 13 | 7 | 18 | 64 | 69 | 65 | 60 | 52 | | 6A | 12 | 12 | 8 | 27 | 61 | 61 | 59 | 56 | 54 | | 10A | 14 | 15 | 12 | 33 | 54 | 58 | 47 | 34 | 36 | | 15A | 16 | 16 | 13 | 34 | 61 | 52 | 36 | 36 | 23 | | 20A | 17 | 19 | 15 | 37 | 67 | 62 | 36 | 32 | 30 | | 30A | 17 | 18 | 14 | 40 | 62 | 53 | 30 | 28 | 26 |
|
|
