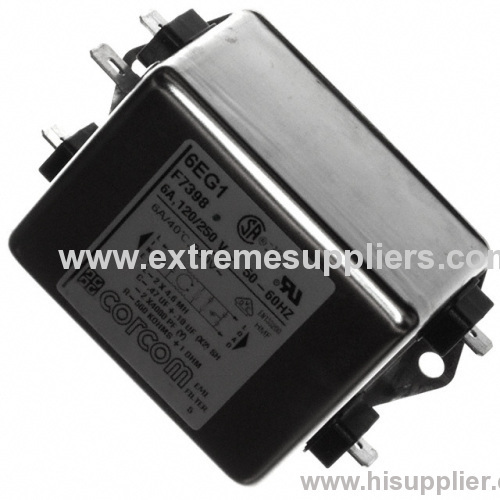

F7398 TE 6EG1 6609050-1 Corcom
| Payment Terms: |
T/T,L/C,D/A |
| Place of Origin: |
Shanghai, China (Mainland) |
Product Detail
Model No.:
6EG1
Production Capacity:
12345678
Delivery Date:
35days
Means of Transport:
Ocean,Land,Air
Packing:
120PIECE/BOX
Brand Name:
TE
G Series
Designed to provide excellent attenuation for most digital electronics equipment
Broad frequency range of performance from 20kHz to 30MHz
- Designed to provide excellent attenuation for most digital electronics equipment
- Broad frequency range of performance from 20kHz to 30MHz
- Size and cost-effective solution
- Designed to help comply with EN55022 Level A and FCC Part 15J Class B
Ordering Information
Available Part Numbers
Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.
Specifications
| Maximum leakage current, each Line to Ground: |
| | | EG Models | VG Models |
| | @ 120 VAC 60 Hz | .30 mA | 1.2 mA |
| | @ 250 VAC 50 Hz | .50 mA | 2.0 mA |
| | | |
| Hipot rating (one minute): |
| | Line to Ground | 2250 VDC |
| | Line to Line | 1450 VDC |
| | | |
| Operating Frequency: | 50 / 60 Hz |
| | | |
| Rated voltage (max.): | 250 VAC |
| | | |
| Rated Current: | 6 & 10A |
| | |
| Operating Ambient Temperature Range (at rated current Ir): |
| | | -10°C to +40°C |
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45 |
Electrical Schematics
6EG1 & 6VG1
10EG1 & 10VG1
Case Styles
EG1 & VG1
| Typical Dimensions: |
| | Line/Load Terminals(4): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Mounting Holes (2): | .188 [4.75] Dia. |
Case Dimensions
| Part No. | A | B | C | D | E |
| (max.) | (max.) | (max.) | ± .015 | (max.) |
| ± .38 |
| 6EG1/VG1 | 3.56 | 2.15 | 1.56 | 2.938 | 3.38 |
| 90.4 | 54.6 | 39.6 | 74.63 | 85.8 |
|
| 10EG1/VG1 | 4.69 | 2.27 | 1.8 | 4.063 | 4.47 |
| 119.1 | 57.7 | 45.7 | 103.2 | 113.5 |
| Minimum Insertion Loss in dB: |
| Measured in closed 50 ohm system |
| | | |
| Common Mode / Asymmetrical (Line to Ground) | | Differential Mode / Symmetrical (Line to Line) |
| |
|
| Current Rating | Frequency - MHz | | .01 | .05 | .07 | .1 | .15 | .5 | 1 | 5 | 10 | 30 |
| | EG1 | | 6A | 6 | 19 | 23 | 25 | 29 | 48 | 44 | 43 | 40 | 40 | | 10A | 8 | 10 | 15 | 18 | 42 | 64 | 65 | 65 | 60 | 60 | | VG1 | | 6A | 4 | 18 | 21 | 25 | 30 | 56 | 55 | 53 | 45 | 45 | | 10A | 5 | 10 | 24 | 37 | 50 | 72 | 70 | 70 | 60 | 60 |
|
| | | Current Rating | Frequency - MHz | | .01 | .05 | .07 | .1 | .15 | .5 | 1 | 5 | 10 | 30 |
| | EG1 | | 6A | 4 | 6 | 10 | 24 | 37 | 66 | 75 | 72 | 50 | 50 | | 10A | 5 | 5 | 5 | 26 | 40 | 65 | 65 | 60 | 70 | 70 | | VG1 | | 6A | 4 | 7 | 7 | 26 | 39 | 67 | 75 | 68 | 55 | 55 | | 10A | 5 | 5 | 7 | 26 | 39 | 65 | 60 | 60 | 70 | 70 |
|
|
