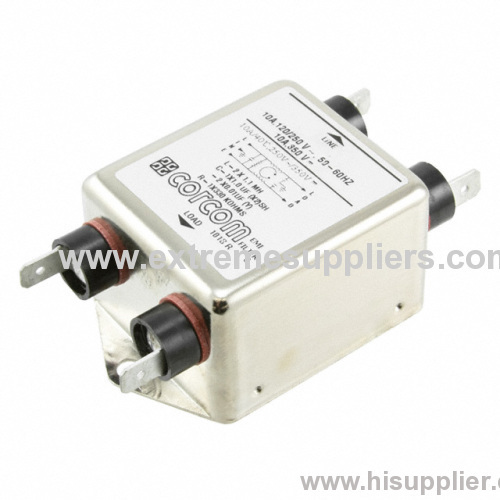

10VSB1 TE Corcom 1-16090354-5
| Payment Terms: |
T/T,L/C,D/A |
| Place of Origin: |
Shanghai, China (Mainland) |
Product Detail
Model No.:
10VSB1
Production Capacity:
12345678
Delivery Date:
35days
Means of Transport:
Ocean,Land,Air
Packing:
120PIECE/BOX
Brand Name:
Corcom
SB Series
Enhanced performance version of our popular B Series of RFI line filters
Small size with enhanced performance
30A version half the size
SB Series
Enhanced performance version of our popular B Series of RFI line filters
Small size with enhanced performance
30A version half the size
Ordering Information
Specifications
| Maximum leakage current, each Line to Ground: |
| | | VSB Models | ESB Models |
| | @ 120 VAC 60 Hz | .75 mA | .22 mA |
| | @ 250 VAC 50 Hz | 1.25 mA | .36 mA |
| | | |
| Hipot rating (one minute): |
| | Line to Ground | 2250 VDC |
| | Line to Line | 1450 VDC |
| | | |
| Operating Frequency: | 50 / 60 Hz |
| | | |
| Rated voltage (max.): | 250 VAC
250 VDC |
| | | |
| Rated Current: | 6A to 30A |
| | |
| Operating Ambient Temperature Range (at rated current Ir): |
| | | -10°C to +40°C |
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45 |
Available Part Numbers
Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.
| 6ESB1 | 6VSB1 |
| 10ESB1 | 10VSB1 |
| 10ESB6 | 10VSB6 |
| 20ESB1 | 20VSB1 |
| 20ESB6 | 20VSB6 |
| 30ESB6 | 30VSB6 |
Electrical Schematic
Case Styles
6ESB1 & 6VSB1
| Typical Dimensions: |
| | Line/Load Terminals(4): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Mounting Holes (2): | .188 [4.75] Dia. |
10ESB1, 10VSB1, 20ESB1 & 20VSB1
| Typical Dimensions: |
| | Line/Load Terminals(4): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Mounting Holes (2): | .188 [4.75] Dia. |
ESB6 & VSB6
| Typical Dimensions: | |
| | Terminals (5): | 8-32
Torque 18 lbf-in. [2.03 N-m] max. ±2[.22] |
| | Mounting Holes (2): | .188 [4.75] Dia. |
Case Dimensions
Case Dimensions
| Part No. | A | B | C | D | E |
| (max.) | (max.) | (max.) | ± .015 | (max.) |
| ± .38 |
| 6ESB1, 6VSB1 | 3.36 | 1.82 | 0.91 | 2.375 | 2.78 |
| 85.34 | 46.23 | 23.11 | 60.325 | 70.61 |
|
| 10ESB1, 10VSB1 | 3.36 | 1.82 | 1.28 | 2.375 | 2.78 |
| 85.34 | 46.23 | 32.51 | 60.325 | 70.61 |
|
| 10ESB6, 10VSB6 | 3.47 | 1.82 | 1.53 | 2.375 | 2.78 |
| 88.14 | 46.23 | 38.86 | 60.325 | 70.61 |
|
| 20ESB1, 20VSB1 | 3.85 | 2.07 | 1.31 | 2.938 | 3.35 |
| 97.79 | 52.58 | 33.27 | 74.625 | 85.09 |
|
| 20ESB6, 20VSB6 | 4.00 | 2.07 | 1.53 | 2.938 | 3.35 |
| 101.60 | 52.58 | 38.86 | 74.625 | 85.09 |
|
| 30ESB6, 30VSB6 | 4.92 | 2.07 | 1.53 | 3.947 | 4.33 |
| 124.97 | 52.58 | 38.86 | 100.254 | 109.98 |
