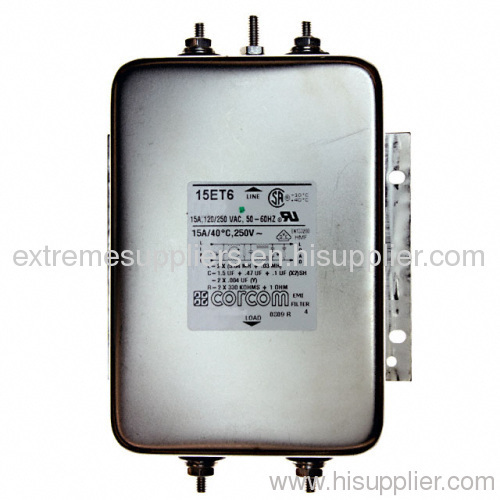

TE Corcom/15ET6/High Performance Filter from China manufacturer - Shanghai Orinet Electronic & Technical Co.,Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 15ET6

Production Capacity: 1000000

Delivery Date: 35 days

Brand Name: Corcom

Operating Frequency: 50 / 60 Hz

Rated Current: 3A to 20A

Means of Transport: Ocean,Air

Packing: 108EA/BOX

Type: EMI Filter

Certification: UL Recognized CSA Certifie...

Rated voltage (max.): 250 VAC

• Superior common-mode and premium
differential-mode attenuation
• Smaller package sizes than the EP Series
• Size and cost-effective

T Series

Superior common-mode and premium differential-mode attenuation
Smaller package sizes than the EP Series
Size and cost-effective
ET models can help meet very low leakage current requirements

Ordering Information

High Performance Filter for Switching Power Supplies

Available Part Numbers

3ET1	3ET3
3ET7	6ET1
6ET3	6ET7
10ET1	10ET3
15ET1	15ET6
20ET1	20ET6
10VT1	10VT3
15VT1	15VT6
20VT1	20VT6

Specifications

Maximum leakagecurrent, each Line to Ground:
		ET Models	VT Models
	@ 120 VAC 60 Hz (3A, 6A, 10A)	.30 mA	.75 mA
	@ 120 VAC 60 Hz (15A, 20A)	.30 mA	1.2 mA

	@ 250 VAC 50 Hz (3A, 6A, 10A)	.50 mA	1.2 mA
	@ 250 VAC 50 Hz (15A, 20A)	.50 mA	2.0 mA

Hipot rating (oneminute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage(max.):		250 VAC

Rated Current:		3A to 20A

Operating Ambient Temperature Range(at rated current Ir):
		-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematics

3 & 6A

High Performance Filter for Switching Power Supplies

10A

15 & 20A

High Performance Filter for Switching Power Supplies

Accessories

GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

High Performance Filter for Switching Power Supplies

Case Styles

T1 (3, 6, 10A)

High Performance Filter for Switching Power Supplies

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Slots (4):	.250 x .156 [6.35 x 3.96] Dia.

T1 (15 & 20A)

High Performance Filter for Switching Power Supplies

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Slots (4):	.250 x .156 [6.35 x 3.96] Dia.

Typical Dimensions:
	Wire leads (5):	.4.0 [101.6] Min. AWG18 (AWG16 for 10A)
	Mounting Holes (2):	.188 [4.75] Dia.

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[..22]
	Mounting Slots (4):	.250 x .156 [6.35 x 3.96] Dia.

Typical Dimensions:
	Load Terminals(2):	.250 [6.3] with .07 [1.8] Dia. hole
	Line Inlet (1):	IEC-60320-1 C14
	Threaded Inserts (2):	6-32 x 1/4

Recommended Panel Cutout

High Performance Filter for Switching Power Supplies

Tolerance ± .005 [0.13]
Back mount only

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	±.015	(max.)
	(max.)	(max.)	(max.)	± .38	(max.)
3ET1, 6ET1	3.56	2.15	1.81	2.938	3.38
3ET1, 6ET1	90.4	54.6	46.0	74.63	85.9

3ET3, 6ET3	2.55	2.15	1.81	2.938	3.38
3ET3, 6ET3	64.8	54.6	46.0	74.63	85.9

3ET7, 6ET7	3.52	2.25	1.78	1.575	0.63*
3ET7, 6ET7	89.4	57.2	45.2	40.01	16.0*

10ET1, 10VT1	4.69	2.27	1.80	4.063	4.47
10ET1, 10VT1	119.1	57.7	45.7	103.2	113.5

10ET3, 10VT3	3.69	2.27	1.80	4.063	4.47
10ET3, 10VT3	93.7	57.7	45.7	103.2	113.5

15ET1, 15VT1, 20ET1, 20VT1	5.45	3.12	2.18	3.50	3.96
15ET1, 15VT1, 20ET1, 20VT1	138.4	79.2	55.4	88.9	100.6

15ET6, 15VT6, 20ET6, 20VT6	5.95	3.12	2.18	3.50	3.96
15ET6, 15VT6, 20ET6, 20VT6	151.1	79.2	55.4	88.9	100.6

* ± .02 [.5]
