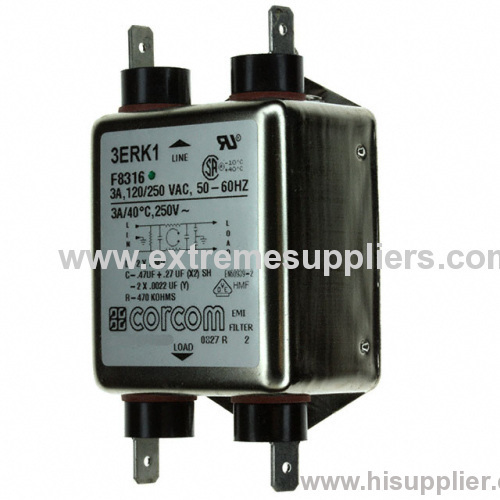

F8316 Corcom TE 3ERK1 1-1609036-7
| Payment Terms: |
T/T,L/C,D/A |
| Place of Origin: |
Shanghai, China (Mainland) |
Product Detail
Model No.:
3ERK1
Production Capacity:
12345678
Delivery Date:
35days
Means of Transport:
Ocean,Land,Air
Packing:
120PIECE/BOX
Brand Name:
Corcom TE
RK Series
Compact
Single stage
Chassis mount
Significant differential mode performance
Suitable for industrial machinery
Low input leakage
RK Series
Compact
Single stage
Chassis mount
Significant differential mode performance
Suitable for industrial machinery
Low input leakage
Ordering Information
Available Part Numbers
Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.
| 3ERK1 | 6ERK1 |
| 10ERK1 | 15ERK1 |
| 20ERK1 | |
Specifications
| Maximum leakage current, each Line to Ground: |
| | @ 120 VAC 60 Hz | 0.16mA |
| | @ 250 VAC 50 Hz | 0.26mA |
| |
| Hipot rating (one minute): |
| | Line to Ground | 2250 VDC |
| | Line to Line | 1450 VDC |
| | | |
| Operating Frequency: | 50 / 60 Hz |
| | | |
| Rated voltage (max.): | 250 VAC |
| | | |
| Rated Current: | 3A to 20A |
| | |
| Operating Ambient Temperature Range (at rated current Ir): |
| | | -10°C to +40°C |
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45
|
Electrical Schematic
Case Styles
RK1 (3 & 6A)
| Typical Dimensions: |
| | Line/Load Terminals(4): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Mounting Holes (2): | .188 [4.75] Dia. |
RK1 (10, 15 & 20A)
| Typical Dimensions: |
| | Line/Load Terminals(4): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Mounting Holes (2): | .188 [4.75] Dia. |
Case Dimensions
| Part No. | A | B | C | D | E |
| (max.) | (max.) | (max.) | ± .015 ‡ | (max.) |
| ± .38 |
| 3ERK1 | 3.35 | 1.82 | 1.16 | 2.38 | 2.78 |
| 85.09 | 46.26 | 29.46 | 74.68 | 70.61 |
| 6ERK1 | 3.35 | 1.82 | 1.28 | 2.38 | 2.78 |
| 85.09 | 46.23 | 32.51 | 74.68 | 70.61 |
10ERK1
15ERK1
20ERK1 | 3.85 | 2.07 | 1.78 | 2.94 | 3.35 |
| 97.79 | 52.58 | 45.21 | 74.67 | 85.09 |
| Minimum Insertion Loss in dB: |
| Measured in closed 50 ohm system |
| | | |
| Common Mode / Asymmetrical (Line to Ground) | | Differential Mode / Symmetrical (Line to Line) |
| |
|
| Current Rating | Frequency - MHz | | .05 | .10 | .15 | .5 | 1 | 2 | 5 | 10 | 20 | 30 |
| | 3A | 21 | 27 | 30 | 43 | 49 | 50 | 50 | 48 | 50 | 49 | | 6A | 19 | 25 | 29 | 37 | 43 | 44 | 48 | 46 | 50 | 48 | | 10A | 20 | 27 | 31 | 45 | 45 | 44 | 46 | 47 | 53 | 44 | | 15A | 21 | 28 | 31 | 45 | 43 | 41 | 42 | 42 | 47 | 57 | | 20A | 19 | 25 | 29 | 34 | 36 | 38 | 40 | 41 | 43 | 52 |
|
| | | Current Rating | Frequency - MHz | | .05 | .10 | .15 | .50 | 1 | 2 | 5 | 10 | 20 | 30 |
| | 3A | 9 | 20 | 35 | 67 | 78 | 78 | 72 | 66 | 61 | 60 | | 6A | 14 | 14 | 13 | 59 | 74 | 80 | 72 | 68 | 61 | 60 | | 10A | 14 | 12 | 30 | 65 | 80 | 84 | 78 | 70 | 60 | 50 | | 15A | 15 | 13 | 20 | 61 | 76 | 88 | 70 | 72 | 64 | 50 | | 20A | 16 | 19 | 16 | 54 | 74 | 90 | 74 | 67 | 61 | 54 |
|
|
