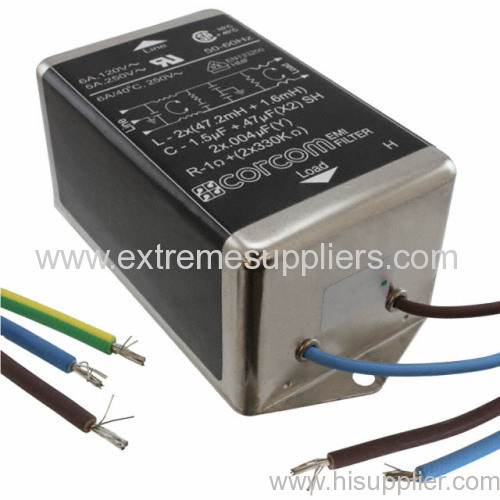

Corcom 6EQ3 TE 6609056-4 1609056-4
| Payment Terms: |
T/T,L/C,D/A |
| Place of Origin: |
Shanghai, China (Mainland) |
Product Detail
Model No.:
6EQ3
Production Capacity:
12345678
Delivery Date:
35days
Means of Transport:
Ocean,Land,Air
Packing:
120PIECE/BOX
Brand Name:
TE
Q Series
Specifically developed for switching power supplies
High attenuation for common and differential mode interference
Effective from 10kHz
Q Series
- Specifically developed for switching power supplies
- High attenuation for common and differential mode interference
- Effective from 10kHz to 30MHz
- Optimized for attenuation and size
- 3 or 6A versions available with IEC inlet
Ordering Information
Available Part Numbers
Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.
| 3EQ1 | 3VQ1 |
| 3EQ3 | 3VQ3 |
| 3EQ8 | 3VQ8 |
| 3EQ8M | 3VQ8M |
| 6EQ1 | 20EQ1 |
| 6EQ3 | 20VQ1 |
| 6QE8 | |
| 6EQ8M | |
| |
| |
| |
Specifications
| Maximum leakage current, each Line to Ground: |
| | | VQ Models | EQ Models |
| | @ 120 VAC 60 Hz (3A, 20A) | .73 mA | .22 mA |
| | @ 120 VAC 60 Hz (6A) | - | .29 mA |
| | | |
| | @ 250 VAC 50 Hz (3A, 20A) | 1.27 mA | .38 mA |
| | @ 250 VAC 50 Hz (6A) | - | .51 mA |
| | | |
| Hipot rating (one minute): |
| | Line to Ground | 2250 VDC |
| | Line to Line | 1450 VDC |
| | | |
| Operating Frequency: | 50 / 60 Hz |
| | | |
| Rated voltage (max.): | 250 VAC |
| | | |
| Rated Current: | 3A to 20A |
| | |
| Operating Ambient Temperature Range (at rated current Ir): |
| | | -10°C to +40°C |
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45 |
Electrical Schematics
3A
6, 20A
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C13 line cord
Case Styles
Q1
| Typical Dimensions: |
| | Line/Load Terminals(4): | .250 [6.3] with .07 [1.8] Dia. hole |
| | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot |
| | Mounting Holes (2): | .188 [4.75] Dia. |
Q3
| Typical Dimensions: | |
| | Wire leads (5): | .4.0 [101.6] Min. AWG18 (AWG16 for 10A) |
| | Mounting Holes (2): | .188 [4.75] Dia. |
3A Q8, Q8M (with metric insert)
| Typical Dimensions: |
| | Wire leads (3): | .6.0 [152.4] Min. AWG18 |
| | Line Inlet (1): | IEC 60320-1 C14 |
| | Q8 Inserts (2): | 6-32 x 1/4 |
| | Q8M Inserts (2): | M3x.5 |
6A Q8, Q8M (with metric insert)
| Typical Dimensions: |
| | Wire leads (3): | .6.0 [152.4] Min. AWG18 |
| | Line Inlet (1): | IEC 60320-1 C14 |
| | Q8 Inserts (3): | 6-32 x 1/4 |
| | Q8M Inserts (3): | M3x.5 |
Recommended Panel Cutouts
Case Dimensions
| Part No. | A | B | C | D | E |
| (max.) | (max.) | (max.) | ± .015 | (max.) |
| ± .38 |
| 3VQ1, 3EQ1 | 3.85 | 2.07 | 1.78 | 2.938 | 3.34 |
| 97.8 | 52.6 | 45.2 | 74.63 | 84.8 |
|
| 3VQ3, 3EQ3 | 2.56 | 2.07 | 1.78 | 2.938 | 3.34 |
| 65.0 | 52.6 | 45.2 | 74.63 | 84.8 |
|
3VQ8, 3VQ8M,
3EQ8, 3EQ8M | 3.07 | 2.25 | 1.78 | 1.575 | 0.63* |
| 78.0 | 57.2 | 45.2 | 40.01 | 16.0* |
|
| 6EQ1 | 4.98 | 2.27 | 1.80 | 4.063 | 4.47 |
| 126.5 | 57.7 | 45.7 | 103.2 | 113.5 |
|
6EQ3 | 3.69 | 2.27 | 1.80 | 4.063 | 4.47 |
| 93.7 | 57.7 | 45.7 | 103.2 | 113.5 |
|
| 6EQ8, 6EQ8M | 5.47 | 2.07 | 1.78 | 1.575 | 2.70 |
| 138.9 | 52.6 | 45.2 | 40.01 | 68.0 |
|
| 20EQ1, 20VQ1 | 6.66 | 2.07 | 2.28 | 5.625 | 6.03* |
| 168.1 | 52.6 | 57.9 | 142.9 | 153.2* |
|
| * ± .02 [.05] |
| Minimum Insertion Loss in dB: |
| Measured in closed 50 ohm system |
| | | |
| Common Mode / Asymmetrical (Line to Ground) | | Differential Mode / Symmetrical (Line to Line) |
| |
|
| Current Rating | Frequency - MHz | | .01 | .02 | .05 | .15 | .5 | 1 | 5 | 10 | 30 |
| | 3VQ | 22 | 27 | 37 | 50 | 55 | 55 | 55 | 50 | 55 | | 3EQ | 22 | 27 | 36 | 47 | 47 | 43 | 45 | 45 | 45 | | 6EQ | 26 | 31 | 20 | 68 | 72 | 72 | 65 | 65 | 65 | | 20EQ1 | 6 | 10 | 8 | 39 | 60 | 65 | 65 | 65 | 55 | | 20VQ1 | 6 | 3 | 17 | 52 | 65 | 70 | 70 | 70 | 70 |
|
| | | Current Rating | Frequency - MHz | | .01 | .02 | .05 | .15 | .5 | 1 | 5 | 10 | 30 |
| | 3VQ | 1 | 17 | 42 | 65 | 75 | 75 | 60 | 65 | 65 | | 3EQ | 1 | 17 | 42 | 65 | 75 | 75 | 65 | 65 | 60 | | 6EQ | 6 | 10 | 43 | 70 | 75 | 75 | 65 | 55 | 55 | | 20EQ1 | 15 | 20 | 20 | 46 | 65 | 70 | 65 | 60 | 60 | | 20VQ1 | 15 | 20 | 20 | 46 | 65 | 70 | 65 | 60 | 60 |
|
|
