Model No.: 6ESB1

Production Capacity: 12345678

Delivery Date: 35days

Means of Transport: Ocean,Land,Air

Packing: 120PIECE/BOX

Brand Name: Corcom

SB Series
Enhanced performance version of our popular B Series of RFI line filters
Small size with enhanced performance
30A version half the size

SB Series
Enhanced performance version of our popular B Series of RFI line filters
Small size with enhanced performance
30A version half the size
Ordering Information

Available Part Numbers

Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.

6ESB1	6VSB1
10ESB1	10VSB1
10ESB6	10VSB6
20ESB1	20VSB1
20ESB6	20VSB6
30ESB6	30VSB6

Specifications

Maximum leakage current, each Line to Ground:
		VSB Models	ESB Models
	@ 120 VAC 60 Hz	.75 mA	.22 mA
	@ 250 VAC 50 Hz	1.25 mA	.36 mA

Hipot rating (one minute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage (max.):		250 VAC 250 VDC

Rated Current:		6A to 30A

Operating Ambient Temperature Range (at rated current Ir):
		-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

Case Styles

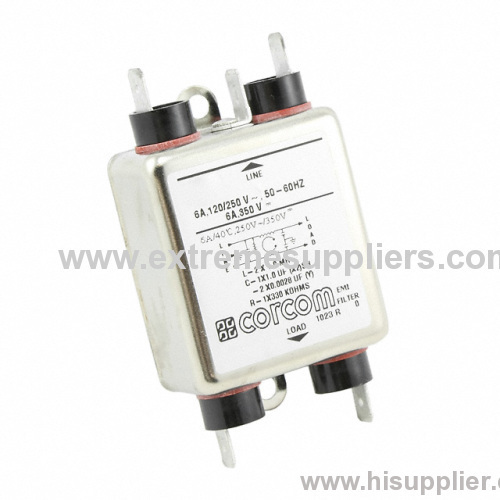

6ESB1 & 6VSB1

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

10ESB1, 10VSB1, 20ESB1 & 20VSB1

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

ESB6 & VSB6

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[.22]
	Mounting Holes (2):	.188 [4.75] Dia.

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	± .015	(max.)
	(max.)	(max.)	(max.)	± .38	(max.)
6ESB1, 6VSB1	3.36	1.82	0.91	2.375	2.78
6ESB1, 6VSB1	85.34	46.23	23.11	60.325	70.61

10ESB1, 10VSB1	3.36	1.82	1.28	2.375	2.78
10ESB1, 10VSB1	85.34	46.23	32.51	60.325	70.61

10ESB6, 10VSB6	3.47	1.82	1.53	2.375	2.78
10ESB6, 10VSB6	88.14	46.23	38.86	60.325	70.61

20ESB1, 20VSB1	3.85	2.07	1.31	2.938	3.35
20ESB1, 20VSB1	97.79	52.58	33.27	74.625	85.09

20ESB6, 20VSB6	4.00	2.07	1.53	2.938	3.35
20ESB6, 20VSB6	101.60	52.58	38.86	74.625	85.09

30ESB6, 30VSB6	4.92	2.07	1.53	3.947	4.33
30ESB6, 30VSB6	124.97	52.58	38.86	100.254	109.98

High Performance B Series RFI Line Filters

UL Recognized
CSA Certified
VDE Approved

Catalog Data Sheet
Printer friendly version

SB Series

Enhanced performance version of our popular B Series of RFI line filters
Small size with enhanced performance
30A version half the size of other 30A filters
Low leakage version available that meets current requirements of VDE portable equipment and non-patient care medical equipment

Ordering Information

Available Part Numbers

Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.

6ESB1	6VSB1
10ESB1	10VSB1
10ESB6	10VSB6
20ESB1	20VSB1
20ESB6	20VSB6
30ESB6	30VSB6

Specifications

Maximum leakage current, each Line to Ground:
		VSB Models	ESB Models
	@ 120 VAC 60 Hz	.75 mA	.22 mA
	@ 250 VAC 50 Hz	1.25 mA	.36 mA

Hipot rating (one minute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage (max.):		250 VAC 250 VDC

Rated Current:		6A to 30A

Operating Ambient Temperature Range (at rated current Ir):
		-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

Case Styles

6ESB1 & 6VSB1

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

10ESB1, 10VSB1, 20ESB1 & 20VSB1

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

ESB6 & VSB6

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[.22]
	Mounting Holes (2):	.188 [4.75] Dia.

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	± .015	(max.)
	(max.)	(max.)	(max.)	± .38	(max.)
6ESB1, 6VSB1	3.36	1.82	0.91	2.375	2.78
6ESB1, 6VSB1	85.34	46.23	23.11	60.325	70.61

10ESB1, 10VSB1	3.36	1.82	1.28	2.375	2.78
10ESB1, 10VSB1	85.34	46.23	32.51	60.325	70.61

10ESB6, 10VSB6	3.47	1.82	1.53	2.375	2.78
10ESB6, 10VSB6	88.14	46.23	38.86	60.325	70.61

20ESB1, 20VSB1	3.85	2.07	1.31	2.938	3.35
20ESB1, 20VSB1	97.79	52.58	33.27	74.625	85.09

20ESB6, 20VSB6	4.00	2.07	1.53	2.938	3.35
20ESB6, 20VSB6	101.60	52.58	38.86	74.625	85.09

30ESB6, 30VSB6	4.92	2.07	1.53	3.947	4.33
30ESB6, 30VSB6	124.97	52.58	38.86	100.254	109.98

Performance Data

Typical Insertion Loss
Measured in closed 50 ohm system
ESB Models
6ESB1	10ESB1	10ESB6	20ESB1
20ESB6	30ESB6
VSB Models
6VSB1	10VSB1	10VSB6	20VSB1
20VSB6	30VSB6

Minimum Insertion Loss in dB:

Measured in closed 50 ohm system

Common Mode / Asymmetrical (Line to Ground)

Differential Mode / Symmetrical (Line to Line)

Current Rating	Frequency - MHz
Current Rating	.03	.05	.1	.15	.5	1	2	5	10	20	30

ESB Models
6ESB1	3	8	13	17	31	37	40	47	50	58	62
10ESB1	3	9	15	19	31	39	41	44	47	54	51
10ESB6	3	9	14	18	31	39	41	44	47	54	54
20ESB1	3	7	13	15	30	35	37	39	40	46	40
20ESB6	3	7	13	16	30	35	39	40	44	58	46
30ESB6	3	7	13	17	30	34	37	40	42	49	58

VSB Models
6VSB1	3	8	14	19	37	47	51	58	66	59	49
10VSB1	3	9	15	21	41	49	50	56	64	54	46
10VSB6	4	9	15	21	39	49	50	56	64	54	44
20VSB1	3	7	14	19	37	45	47	50	60	48	40
20VSB6	3	7	14	19	37	44	49	52	62	48	41
30VSB6	3	6	13	18	37	45	49	51	60	50	42

Current Rating	Frequency - MHz
Current Rating	.01	.03	.05	.1	.15	.5	1	2	5	10	20	30

ESB Models
6ESB1	5	14	20	25	29	41	49	47	50	60	74	72
10ESB1	5	15	20	26	29	41	47	50	54	64	74	74
10ESB6	5	14	20	25	29	41	47	48	50	60	62	64
20ESB1	5	15	21	26	29	41	45	48	54	63	70	66
20ESB6	5	15	21	26	29	41	44	48	54	63	70	66
30ESB6	5	14	20	25	29	40	46	50	50	58	70	70

VSB Models
6VSB1	5	14	20	25	29	40	41	57	66	78	56	62
10VSB1	5	15	21	26	29	39	40	60	64	67	67	64
10VSB6	5	14	20	25	29	39	40	60	64	68	70	64
20VSB1	5	15	20	26	29	40	42	60	68	70	70	67
20VSB6	5	15	21	26	29	39	38	58	68	70	70	66
30VSB6	5	15	20	25	29	39	39	56	62	70	70	66
