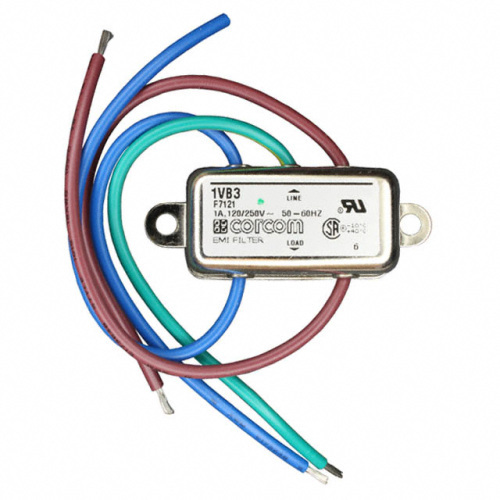

F7121 Corcom 1VB3 TE 1609021-2 6609021-2

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 1VB3

Production Capacity: 1234567890

Delivery Date: 35 days

Means of Transport: Ocean,Air

Packing: 168EA/BOX

Brand Name: TE Corcom

Small size & low cost
General purpose
Wide variety of termination options
Meets low leakage current requirements of VDE portable equipment

B Series

Small size & low cost
General purpose
Wide variety of termination options
Meets low leakage current requirements of VDE portable equipment and non-patient medical equipment

Ordering Information

General Purpose RFI Power Line Filters for High Impedance Loads at Low Current

Available Part Numbers

1VB1	1EB1
1VB3	1EB3
2VB1	2EB1
2VB3	2EB3
3VB1	3EB1
3VB3	3EB3
5VB1	5EB1
5VB3	5EB3
10VB1	10EB1
10VB3	10EB3
10VB6	20EB1
20VB1
20VB6
30VB6

Specifications

Maximum leakage current, each Line to Ground:
		VB Models	EB Models
	@ 120 VAC 60 Hz:	.4 mA	.21 mA
	@ 250 VAC 50 Hz:	.7 mA	.36 mA

Hipot rating (one minute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage (max.):		250 VAC

Rated Current:		1A to 30A

Operating Ambient Temperature Range (at rated current Ir):
		-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

General Purpose RFI Power Line Filters for High Impedance Loads at Low Current

Case Styles

B1

General Purpose RFI Power Line Filters for High Impedance Loads at Low Current

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

Typical Dimensions:
	Wire leads (5):	.4.0 [101.6] Min. AWG18 (AWG16 for 10A)
	Mounting Holes (2):	.188 [4.75] Dia.

10VB6 & 20VB6

General Purpose RFI Power Line Filters for High Impedance Loads at Low Current

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[.22]
	Mounting Holes (2):	.188 [4.75] Dia.

30VB6

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[.22]
	Mounting Slots (4):	.250 x .156 [6.35 x 3.96]

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	± .015	(max.)
	(max.)	(max.)	(max.)	±.38	(max.)
1VB1, 1EB1, 2VB1, 2EB1	2.25	1.82	0.66	2.125	2.53
1VB1, 1EB1, 2VB1, 2EB1	57.2	46.2	16.8	53.98	64.3

1VB3, 1EB3, 2VB2, 2EB3	0.96	1.82	0.66	2.125	2.53
1VB3, 1EB3, 2VB2, 2EB3	24.4	46.2	19.8	53.98	64.3

3VB1, 3EB1, 5VB1, 5EB1	2.61	1.82	0.78	2.125	2.53
3VB1, 3EB1, 5VB1, 5EB1	66.3	46.2	19.8	53.98	64.3

3VB3, 3EB3 5VB3, 5EB3	1.32	1.82	0.78	2.125	2.53
3VB3, 3EB3 5VB3, 5EB3	33.5	46.2	19.8	53.98	64.3

10VB1, 10EB1	2.61	1.82	1.16	2.125	2.53
10VB1, 10EB1	66.3	46.2	29.5	53.98	64.3

10VB3, 10EB3	1.32	1.82	1.16	2.125	2.53
10VB3, 10EB3	33.5	46.2	29.5	53.98	64.3

10VB6	2.72	1.82	1.16	2.125	2.53
10VB6	69.1	46.2	29.5	53.98	64.3

20VB1, 20EB1	3.36	2.07	1.16	2.375	2.81
20VB1, 20EB1	85.3	52.6	29.5	60.33	71.4

20VB6	3.46	2.07	1.16	2.375	2.81
20VB6	87.9	52.6	29.5	60.33	71.4

30VB6	5.34	3.38	1.53	3.75	4.20
30VB6	135.6	85.9	38.9	95.3	106.7
