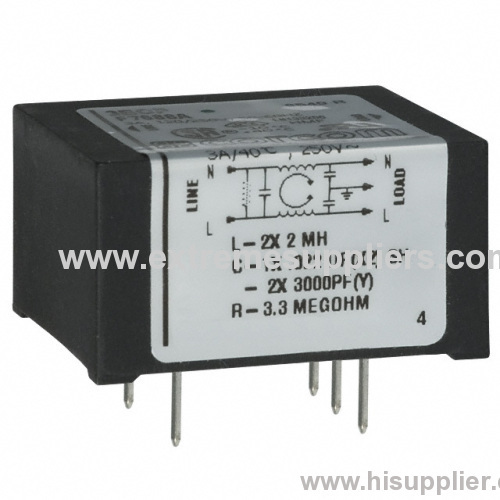

Model No.: 1EDP

Production Capacity: 1000000

Delivery Date: 35days

Means of Transport: Ocean,Land,Air

Packing: 120PIECE/BOX

Brand Name: Corcom

EBP Series
General purpose
Low leakage current
Cost-effective
Compact size
EDP Series
Enhanced differential mode performance
Low l

EBP Series

General purpose
Low leakage current
Cost-effective
Compact size

EDP Series

Enhanced differential mode performance
Low leakage current
Cost-effective

EOP Series

General purpose
Low leakage current
Cost-effective

Specifications

Maximum leakage current, each Line to Ground:
		EDP/EOP Models	EBP Models
	@ 120 VAC 60 Hz	.22 mA	.13 mA
	@ 250 VAC 50 Hz	.38 mA	.21 mA

Hipot rating (one minute):
	Line to Ground	1500 VAC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage (max.):		250 VAC

Rated Current:		1A to 10A

Ordering Information

Electrical Schematic

EBP

EDP & EOP
Available Part Numbers

Click on any part number for 3D CAD models, customer drawings, distributor stock status and eCommerce Links.

1EBP	3EBP
1EDP	1EOP
3EDP	3EOP
6EDP	6EOP
10EDP	10EOP

Case Styles
EBPCase Dimensions
EDP & EOP
Performance Data

Typical Insertion Loss
Measured in closed 50 ohm system

Typical Insertion Loss
Measured in closed 50 ohm system

1EBP	3EBP
1EDP	3EDP	6EDP	10EDP
1EOP	3EOP	6EOP	10EOP

Minimum Insertion Loss in dB:

Measured in closed 50 ohm system

Common Mode / Asymmetrical (Line to Ground)

Differential Mode / Symmetrical (Line to Line)

Current Rating	Frequency - MHz
Current Rating	.15	.5	1	5	10	30

EBP Models
1A	30	40	40	42	45	45
3A	24	29	30	42	45	45
EOP Models
1A	32	41	54	54	46	40
3A	18	28	35	41	40	40
6A	10	20	28	37	40	40
10A	5	14	19	27	33	40


EDP Models
1A	32	41	54	54	46	40
3A	18	28	35	41	40	40
6A	10	20	28	37	40	40
10A	5	14	19	27	33	40

Current Rating	Frequency - MHz
Current Rating	.15	.5	1	5		10		30

EBP Models
1A	-	14	25	35		33		25
3A	-	14	15	31		34		25
EDP Models
1A	4	14	42	42		44		38
3A	4	14	24	38		38		38
6A	4	14	22	30		34		34
10A	6	16	22	40		50		45

	Frequency - MHz
EDP Models	.15	.5	1	2	4	10	20	30
1A	1	6	19	39	48	52	38	35
3A	1	4	9	9	28	41	36	35
6A	1	4	9	9	40	40	42	35
10A	1	4	9	9	14	35	42	35
