F7359 Corcom 10VR6 TE 1-1609032-5 1-6609032-5

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 10VR6

Production Capacity: 1000000

Delivery Date: 35 days

Brand Name: TE

Operating Frequency: 50 / 60 Hz

Rated Current: 1A to 20A

Means of Transport: Ocean,Air

Packing: 36EA/BOX

Type: EMI Filter

Certification: UL Recognized CSA Certifie...

Rated voltage (max): 250 VAC

• Dual T section RFI filter provides premium
performance
• Well suited for low impedance loads where noisy
RFI environments are present

R Series

   Dual T section RFIfilter provides premium performance
   Well suited for low impedanceloads where noisy RFI environments are present
   Controls pulsed, continuousand/or intermittent interference
   ER models offer low leakagecurrent without deterioration of insertion loss

Ordering Information

Two Stage General Purpose Filters

Available Part Numbers

1VR1	1ER1
1VR3	1ER3
2VR1	2ER1
2VR3	2ER3
3VR1	3ER1
3VR3	3ER3
3VR7	3ER7
3VR7M	3ER7M
5VR1	5ER1
5VR3	5ER3
5VR7	5ER7
5VR7M	5ER7M
10VR1	10ER1
10VR3	10ER3
10VR6	10ER7
10VR7	10ER7M
10VR7M	20ER1
20VR1
20VR6

Specifications

Maximum leakagecurrent, each Line to Ground:
		VR Models	ER Models
	@ 120 VAC 60 Hz	.4 mA	.21 mA
	@ 250 VAC 50 Hz	.7 mA	.36 mA

Hipot rating (oneminute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage(max.):		250 VAC

Rated Current:		1A to 20A

Operating Ambient Temperature Range(at rated current Ir):
		-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematic

Two Stage General Purpose Filters

Accessories

GA400: NEMA 5-15P to IEC 60320-1 C13 line cord

Two Stage General Purpose Filters

Case Styles

R1 (1-15 Amp)

Two Stage General Purpose Filters

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

R1 (20A)

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Slots(4):	.250 x .156 [6.35 x 3.96] Dia.

Typical Dimensions:
	Wire leads (5):	.4.0 [101.6] Min. AWG18 (AWG16 for 10A)
	Mounting Holes (2):	.188 [4.75] Dia.

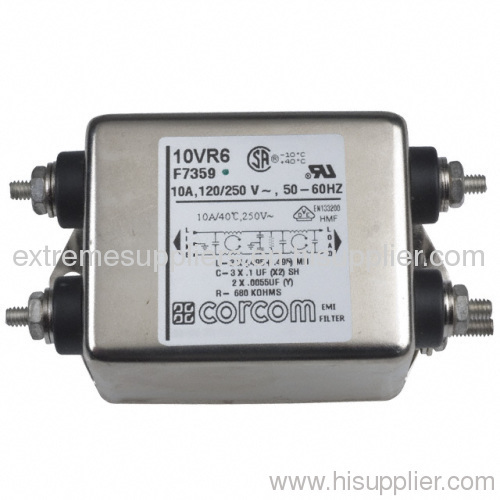

10VR6

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[..22]
	Mounting Holes (2):	.188 [4.75] Dia.

20VR6

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[..22]
	Mounting Slots(4):	.250 x .156 [6.35 x 3.96] Dia.

R7 & R7M (with metric insert)

Two Stage General Purpose Filters

Typical Dimensions:
	Load Terminals(2):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Line Inlet (1):	IEC 60320-1 C14
	K7 Inserts (2):	6-32 x 1/4
	K7M Inserts(2):	M3x.5

Recommended Panel Cutouts

Two Stage General Purpose Filters

tolerance ± .005 [0.13]
Back mount only

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	±.015	(max.)
	(max.)	(max.)	(max.)	± .38	(max.)
1VR1, 1ER1, 2VR1, 2ER1	3.35	1.81	1.16	2.375	2.78
1VR1, 1ER1, 2VR1, 2ER1	85.1	46.0	29.5	60.33	70.6

1VR3, 1ER3, 2VR3, 2ER3	2.07	1.81	1.16	2.375	2.78
1VR3, 1ER3, 2VR3, 2ER3	52.6	46.0	29.5	60.33	70.6

3VR1, 3ER1, 5VR1, 5ER1	3.85	2.07	1.16	2.938	3.35
3VR1, 3ER1, 5VR1, 5ER1	97.8	52.6	29.5	74.63	85.1

3VR3, 3ER3, 5VR3, 5ER3	2.56	2.07	1.16	2.938	3.35
3VR3, 3ER3, 5VR3, 5ER3	65.0	52.6	29.5	74.63	85.1

3VR7,3VR7M, 3ER7, 3ER7M	4.33	2.25	1.28	1.575	0.64 †
3VR7,3VR7M, 3ER7, 3ER7M	110.0	57.2	32.5	40.01	16.3

5VR7, 5VR7M, 5ER7, 5ER7M	4.33	2.25	1.28	1.575	0.64 †
5VR7, 5VR7M, 5ER7, 5ER7M	110.0	57.2	32.5	40.01	16.3

10VR1, 10ER1	3.85	2.07	1.53	2.938	3.35
10VR1, 10ER1	97.8	52.6	38.9	74.63	85.1

10VR3, 10ER3	2.56	2.07	1.53	2.938	3.35
10VR3, 10ER3	65.0	52.6	38.9	74.63	85.1

10VR6	3.96	2.07	1.53	2.938	3.35
10VR6	100.6	52.6	38.9	74.63	85.1

10VR7, 10VR7M, 10ER7, 10ER7M	4.33	2.25	1.53	1.575	0.88 †
10VR7, 10VR7M, 10ER7, 10ER7M	110.0	57.2	38.9	40.01	22.4

20VR1, 20ER1	5.23	3.37	1.53	3.75	4.20
20VR1, 20ER1	132.8	85.6	38.9	95.25	106.7

20VR6	5.34	3.37	1.53	3.75	4.20
20VR6	135.6	85.6	38.9	95.25	106.7

† ± .02 [.05]
