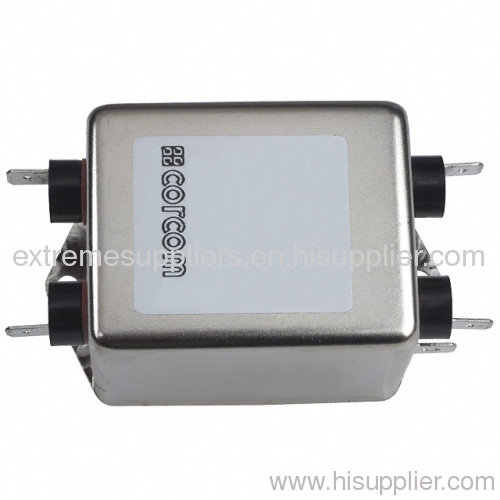

F7247 Corcom 6VS1 TE 1609042-2 6609042-2

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 6VS1

Production Capacity: 1000000

Delivery Date: 35 days

Brand Name: TE Corcom

Means of Transport: Ocean,Air

Packing: 36EA/BOX

Type: EMI Filter

Certification: UL Recognized CSA Certifie...

Combines Line to Ground interference rejection filters with additional circuitry to reduce Line to Line noise and transients

S Series

• Combines Line to Ground interference rejection filters with additional circuitry to reduce Line to

Line noise and transients

• Designed for use when equipment impedance at

RF frequencies is high

• Effective for use with switch-mode power supplies

• Effective when used to control emissions in

equipment using SCR and T2L circuits for

compliance with FCC Part 15, Subpart J and

EN55022, Level A, down to 150kHz

Ordering Information

Multipurpose Filter for Emission Control and High Noise Applications

Available Part Number

3VS1	10VS1
6VS1	20VS1
20VS6	60VS6

Specifications

Maximum leakagecurrent, each Line to Ground:
		3 to 20 Amp	60 Amp
	@ 120 VAC 60 Hz	.4 mA	.75 mA
	@ 250 VAC 50 Hz	.7 mA	1.25 mA

Hipot rating (oneminute):
	Line to Ground	2250 VDC
	Line to Line	1450 VDC

Operating Frequency:		50 / 60 Hz

Rated voltage(max.):		250 VAC

Rated Current:		3A to 60A

Operating Ambient Temperature Range(at rated current Ir):
		-10°C to +40°C
In an ambienttemperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir √(85-Ta)/45

Electrical Schematics

3, 6, 10VS

Multipurpose Filter for Emission Control and High Noise Applications

20VS

60VS

Case Styles

S1 (3, 6, 10A)

Multipurpose Filter for Emission Control and High Noise Applications

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Holes (2):	.188 [4.75] Dia.

20VS1

Typical Dimensions:
	Line/Load Terminals(4):	.250 [6.3] with .07 [1.8] Dia. hole
	Ground Terminal(1):	.250 [6.3] with .07 x .16 [1.8 x 3.8] slot
	Mounting Slots(4):	.250 x .156 [6.35 x 3.96] Dia.

20VS6

Typical Dimensions:
	Terminals (5):	8-32 Torque 18 lbf-in. [2.03 N-m] max. ±2[..22]
	Mounting Slots(4):	.250 x .156 [6.35 x 3.96] Dia.

60VS6

Typical Dimensions:
	Terminals (5):	1/4-20 Torque 56 lbf-in. [6.32 N-m] max. ±2[..22]
	Mounting Holes (4):	.218 [5.53] Dia. ± .006 [.152]

Case Dimensions

Part No.	A	B	C	D	E
	(max.)	(max.)	(max.)	±.015	(max.)
	(max.)	(max.)	(max.)	± .38	(max.)
3VS1	3.36	1.82	1.16	2.375	2.78
3VS1	85.3	46.2	29.5	60.33	70.6

6VS1, 10VS1	3.86	2.08	1.53	2.938	3.34
6VS1, 10VS1	98.0	52.8	38.9	74.63	84.8

20VS1	5.23	3.38	1.53	3.75	4.20
20VS1	132.8	85.9	38.9	95.25	106.7

20VS6	5.34	3.38	1.53	3.75	4.20
20VS6	132.8	85.9	38.9	95.25	106.7

60VS6	7.2	3.08	2.28	5.63	6.28
60VS6	182.88	78.23	57.91	142.87	158.78
