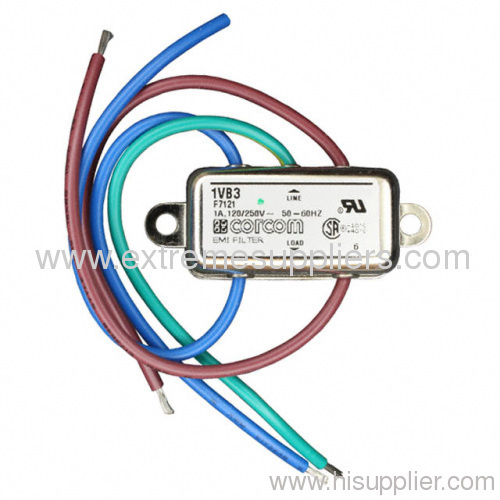

F7121 SO Corcom 1VB3 6609021-2
| Payment Terms: |
T/T,L/C,D/A |
| Place of Origin: |
Shanghai, China (Mainland) |
Product Detail
Model No.:
1VB3
Production Capacity:
100000
Delivery Date:
4-6WEEK
Means of Transport:
Ocean,Air
Packing:
120/BOX
Brand Name:
Corcom
Small size & low cost
General purpose
Wide variety of termination options
Meets low leakage current requirements of VDE portable equipment and non-
B Series - Small size & low cost
- General purpose
- Wide variety of termination options
- Meets low leakage current requirements of VDE portable equipment and non-patient medical equipment
Ordering Information Available Part Numbers Click on any part number for links to 3D CAD models, customer drawings, distributor stock status and purchasing information. | 1VB1 | 1EB1 | | 1VB3 | 1EB3 | | 2VB1 | 2EB1 | | 2VB3 | 2EB3 | | 3VB1 | 3EB1 | | 3VB3 | 3EB3 | | 5VB1 | 5EB1 | | 5VB3 | 5EB3 | | 10VB1 | 10EB1 | | 10VB3 | 10EB3 | | 10VB6 | 20EB1 | | 20VB1 | | | 20VB6 | | | 30VB6 | |
| | Specifications | Maximum leakage current, each Line to Ground: | | | | VB Models | EB Models | | | @ 120 VAC 60 Hz: | .4 mA | .21 mA | | | @ 250 VAC 50 Hz: | .7 mA | .36 mA | | | | | | Hipot rating (one minute): | | | Line to Ground | 2250 VDC | | | Line to Line | 1450 VDC | | | | | | Operating Frequency: | 50 / 60 Hz | | | | | | Rated voltage (max.): | 250 VAC | | | | | | Rated Current: | 1A to 30A | | | | | Operating Ambient Temperature Range (at rated current Ir): | | | | -10°C to +40°C | In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir √(85-Ta)/45
|
Electrical Schematic |
Case Styles |
B1 | Typical Dimensions: | | | Line/Load Terminals(4): | .250 [6.3] with .07 [1.8] Dia. hole | | | Ground Terminal(1): | .250 [6.3] with .07 x .16 [1.8 x 3.8] slot | | | Mounting Holes (2): | .188 [4.75] Dia. |
B3 | Typical Dimensions: | | | | Wire leads (5): | .4.0 [101.6] Min. AWG18 (AWG16 for 10A) | | | Mounting Holes (2): | .188 [4.75] Dia. |
10VB6 & 20VB6 | Typical Dimensions: | | | | Terminals (5): | 8-32
Torque 18 lbf-in. [2.03 N-m] max. ±2[.22] | | | Mounting Holes (2): | .188 [4.75] Dia. |
| | 30VB6 | Typical Dimensions: | | | | Terminals (5): | 8-32
Torque 18 lbf-in. [2.03 N-m] max. ±2[.22] | | | Mounting Slots (4): | .250 x .156 [6.35 x 3.96] |
Case Dimensions | Part No. | A | B | C | D | E | | (max.) | (max.) | (max.) | ± .015 | (max.) | | ± .38 | 1VB1, 1EB1,
2VB1, 2EB1
| 2.25 | 1.82 | 0.66 | 2.125 | 2.53 | | 57.2 | 46.2 | 16.8 | 53.98 | 64.3 |
| 1VB3, 1EB3,
2VB2, 2EB3 | 0.96 | 1.82 | 0.66 | 2.125 | 2.53 | | 24.4 | 46.2 | 19.8 | 53.98 | 64.3 |
| 3VB1, 3EB1,
5VB1, 5EB1 | 2.61 | 1.82 | 0.78 | 2.125 | 2.53 | | 66.3 | 46.2 | 19.8 | 53.98 | 64.3 |
| 3VB3, 3EB3
5VB3, 5EB3 | 1.32 | 1.82 | 0.78 | 2.125 | 2.53 | | 33.5 | 46.2 | 19.8 | 53.98 | 64.3 |
| | 10VB1, 10EB1 | 2.61 | 1.82 | 1.16 | 2.125 | 2.53 | | 66.3 | 46.2 | 29.5 | 53.98 | 64.3 |
| | 10VB3, 10EB3 | 1.32 | 1.82 | 1.16 | 2.125 | 2.53 | | 33.5 | 46.2 | 29.5 | 53.98 | 64.3 |
| | 10VB6 | 2.72 | 1.82 | 1.16 | 2.125 | 2.53 | | 69.1 | 46.2 | 29.5 | 53.98 | 64.3 |
| | 20VB1, 20EB1 | 3.36 | 2.07 | 1.16 | 2.375 | 2.81 | | 85.3 | 52.6 | 29.5 | 60.33 | 71.4 |
| | 20VB6 | 3.46 | 2.07 | 1.16 | 2.375 | 2.81 | | 87.9 | 52.6 | 29.5 | 60.33 | 71.4 |
| | 30VB6 | 5.34 | 3.38 | 1.53 | 3.75 | 4.20 | | 135.6 | 85.9 | 38.9 | 95.3 | 106.7 |
|
|
Performance Data | Typical Insertion Loss | | Measured in closed 50 ohm system | | | | | 1EB & 3EB | 2EB, 5EB & 10EB | 20EB | | | | 1VB | 2VB | 3VB | | | | 10VB | 20VB | 30VB | |
| Minimum Insertion Loss in dB: | | Measured in closed 50 ohm system | | | | Common Mode / Asymmetrical (Line to Ground) | | |
| | Current Rating | Frequency - MHz | | .15 | .5 | 1 | 5 | 10 | 30 |
| | VB Models | | | | | | | | 1A, 3A | 15 | 30 | 38 | 50 | 50 | 50 | | 2A, 5A, 10A, 20A, 30A | 7 | 20 | 25 | 40 | 45 | 48 |
| | EB Models | | | | | | | | 1A, 3A | 15 | 29 | 35 | 45 | 45 | 48 | | 2A, 5A, 10A, 20A | 7 | 19 | 23 | 34 | 37 | 42 |
|
|
|
